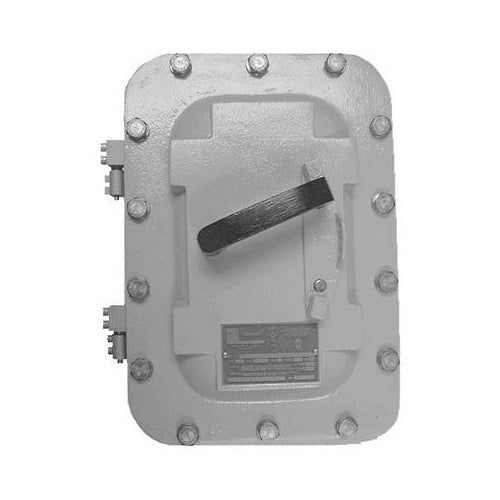

Appleton AEBB10036DS 2.5 Disconnect Switch

Product Specifications

• UPC: 78138184806
• Cover Type: Bolted, Hinged
• Hub Size: 2 Inch
• Hub Location: Top, Bottom
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7/9
• Enclosure Material: Gray Epoxy Powder Coated Sand Cast Copper Free Aluminum
• Mounting: Mounting Feet
• Size: 11 Inch W x 8.97 Inch D x 20.5 Inch H
• Approval: UL, CSA
• Catalog Number: AEBB10036DS
• Model: AE
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 600 VAC, 125/250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 3
• Fuse Provision: Non-Fusible
• Operator Type: External Handle
• Catalog Description: EXPLOSIONPROOF DISCONNECT SWITCH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, 125/250 VDC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 3, FUSE PROVISION NON-FUSIBLE, OPERATOR TYPE EXTERNAL HANDLE, COVER TYPE BOLTED, HINGED, HUB SIZE 2 INCH, HUB LOCATION TOP, BOTTOM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7/9, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED COPPER-FREE ALUMINUM, MOUNTING MOUNTING FEET, SIZE 11 INCH W X 8.97 INCH D X 20.5 INCH H, APPROVAL UL 1203, APPLICATION CHEMICAL PLANT, PETROCHEMICAL PLANT, PETROLEUM REFINERIES, INDUSTRIAL
• Category: Non-Fusible Disconnect Safety Switches
• Full Technical Description: 11 Inch Width X 8.97 Inch Depth X 20.5 Inch Height Size; 2 Inch Hub Size; Gray Epoxy Powder Coated Copper-Free Aluminum Enclosure Material; UL 1203, UL (Canada and Us) Approval; 600 Volt AC, 125/250 Volt DC Voltage Rating; Foot Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 100 Amp Current Rating; Bolted, Hinged Cover Type; 15 HP at 120 Volt AC, 30 HP at 240 Volt AC, 75 HP at 480/600 Volt AC, 25 HP at 250 Volt DC Power Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof; External Handle Operator Type; Top, Bottom Hub Location; Non-Fusible Fuse Provision; Material Stainless Ste
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Disconnect Switch
• Unspsc: 39122233
• UPC 12 Digit: 781381848060
• SKU Name: app aebb10036ds
