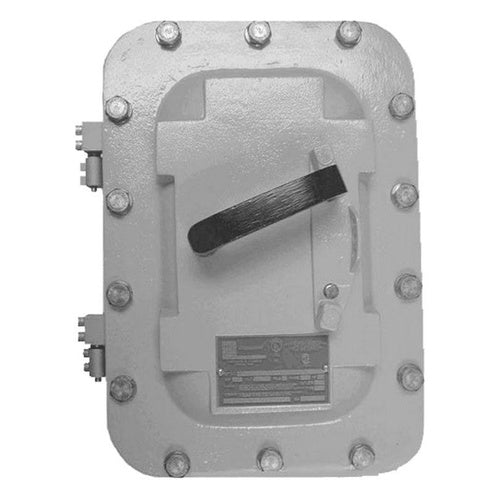

Appleton AEBT13410C 3P 100A 480V Enclosed Circuit Breaker

Product Specifications

• UPC: 78138185652
• Current Rating: 100 AMPERE
• Interrupting Rating: 14000 AMPERE AT 480 VAC
• Number Of Poles: 3
• Hub Size: (4) 1 1/4 INCH
• Hub Location: FEED THROUGH
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7C/7D/9E/9F/9G
• Enclosure Material: COPPER FREE CAST ALUMINUM
• Enclosure Finish: GRAY EPOXY COATED
• Shaft/Handle Material: STAINLESS STEEL
• Catalog Number: AEBT13410C
• Brand Name: Appleton[R]
• Model: AE
• Type: THREADED ENCLOSURE
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Breaker Type: CUTLER HAMMER
• Trip Type: NON INTERCHANGEABLE
• Voltage Rating: 480 VAC, 125/250 VDC
• Catalog Description: ENCLOSED CIRCUIT BREAKER, TYPE THREADED ENCLOSURE, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, BREAKER TYPE CUTLER-HAMMER, TRIP TYPE NON-INTERCHANGEABLE, VOLTAGE RATING 480 VAC, 125/250 VDC, CURRENT RATING 100 AMPERE, INTERRUPTING RATING 14000 AMPERE AT 480 VAC, NUMBER OF POLES 3, HUB SIZE (4) 1-1/4 INCH, HUB LOCATION FEED THROUGH, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7CD/9EFG, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH GRAY EPOXY POWDER COATED, SHAFT/HANDLE MATERIAL STAINLESS STEEL, APPROVAL UL 877
• Category: Enclosed 3 Pole Circuit Breakers
• Full Technical Description: Threaded Enclosure Type; Copper-Free Cast Aluminum Enclosure Material; UL 1203 Approval; 480 Volt Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG Enclosure; 25000 Amp at 240/480 Volt Interrupting Rating; 100 Amp Current Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof, Water Tight; Epoxy Coated Enclosure Finish; Cutler Hammer Breaker Type; Non-Interchangeable Trip Type; Stainless Steel Shaft Shaft/Handle Material; Enclosure Size 60 to 100 Amp; Material Stainless Steel (Operator/Bushing/Exposed Hardware); Application Hazardous Location; Applicable Standard Nec/Cec; AEBT Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Enclosed Circuit Breaker
• Unspsc: 39121601
• UPC 12 Digit: 781381856522
• SKU Name: app aebt13410c
