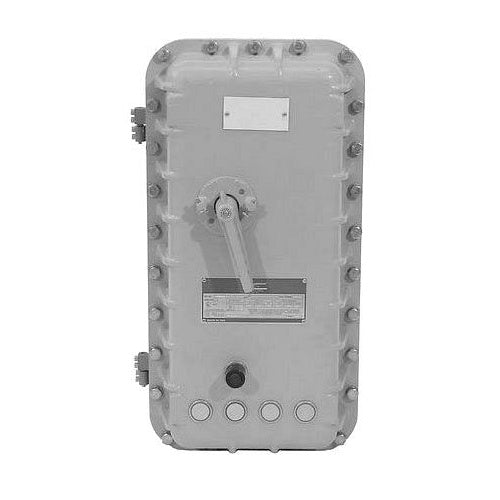

Appleton AECB Circuit Breaker Enclosure

Overview

Appleton AECB Circuit Breaker Enclosure

Product Specifications

• UPC: 78138185688
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Material: COPPER FREE SAND CAST ALUMINUM
• Finish: GRAY EPOXY POWDER COATED
• Used On: AE SERIES NON INTERCHANGEABLE TRIP CIRCUIT BREAKER
• Approval: CSA C22.2
• Catalog Number: AECB
• Brand Name: Appleton[R]
• Model: AE
• Type: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Breaker Voltage Rating: 600 VAC, 125/250 VDC
• Breaker Current Rating: 125/250 AMPERE
• Number Of Breaker Poles: 3
• Hub Size: 2-1/2 INCH
• Catalog Description: CIRCUIT BREAKER ENCLOSURE, TYPE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, NUMBER OF BREAKER POLES 3, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X, MATERIAL COPPER FREE ALUMINUM, FINISH GRAY EPOXY POWDER COATED, USED ON AE SERIES CIRCUIT BREAKER, APPROVAL UL 1203
• Category: 3 Pole Circuit Breaker Enclosures
• Full Technical Description: Explosionproof, Dust Ignitionproof, Water Tight, Bolted Type; Copper-Free Aluminum Material; Gray Epoxy Powder Coated Finish; Ae Circuit Breaker Used on; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 2 or 3 Breaker Pole(S); 600 Volt AC, 125/250 Volt DC Breaker Voltage Rating; 125 to 150 Amp Breaker Current Rating; Overall Dimension 16.1 Inch Width X 8.13 Inch Depth X 24.5 Inch Height; Outlet Size (2) 2-1/2 Inch; Application Hazardous Location, Overload and Short Circuit Protection, Control of Lighting and Power Circuit; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Circuit Breaker Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 781381856881
• SKU Name: app aecb

Resources

• Manufacturer Spec Sheet
