Product information
Overview

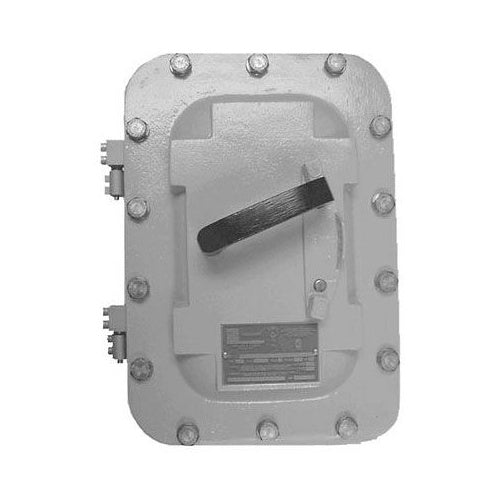

Appleton AECB10036FDS 2.5 Disconnect Switch
Product Specifications
- UPC: 78138184800
- Operator Type: External Handle
- Cover Type: Bolted, Hinged
- Hub Size: 2.5 Inch
- Hub Location: Top, Bottom
- Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7/9
- Enclosure Material: Gray Epoxy Powder Coated Sand Cast Copper Free Aluminum
- Size: 16.38 Inch W x 9.59 Inch D x 25.13 Inch H
- Approval: UL
- Catalog Number: AECB10036FDS
- Model: AE
- Constructional Feature: Dust Ignitionproof, Explosionproof
- Voltage Rating: 600 VAC, 125/250 VDC
- Current Rating: 100 Ampere
- Number Of Poles: 3
- Fuse Provision: Fusible
- Fuse Type: Type J
- Catalog Description: EXPLOSIONPROOF DISCONNECT SWITCH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, 125/250 VDC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 3, FUSE PROVISION FUSIBLE, FUSE TYPE TYPE J, OPERATOR TYPE EXTERNAL HANDLE, COVER TYPE BOLTED, HINGED, HUB SIZE 2.5 INCH, HUB LOCATION TOP, BOTTOM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7/9, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED COPPER-FREE ALUMINUM, SIZE 16.38 INCH W X 9.59 INCH D X 25.13 INCH H, APPROVAL UL 1203, APPLICATION CHEMICAL PLANT, PETROCHEMICAL PLANT, PETROLEUM REFINERIES, INDUSTRIAL
- Category: Non-Fusible Disconnect Safety Switches
- Full Technical Description: 16.38 Inch Width X 9.59 Inch Depth X 25.13 Inch Height Size; 2.5 Inch Hub Size; Gray Epoxy Powder Coated Copper-Free Aluminum Enclosure Material; UL 1203, UL (Canada and Us) Approval; 600 Volt AC, 125/250 Volt DC Voltage Rating; Foot Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 100 Amp Current Rating; Bolted, Hinged Cover Type; 15 HP at 120 Volt AC, 30 HP at 240 Volt AC, 75 HP at 480/600 Volt AC, 25 HP at 250 Volt DC Power Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof; External Handle Operator Type; Type J Fuse Type; Top, Bottom Hub Location; Fusible Fuse Provision;
- Manufacturer: Appleton Electric
- Manufacturer Brand: Appleton Electric
- Sub Category: Explosionproof Disconnect Switch
- Unspsc: 39122233
- UPC 12 Digit: 781381848008
- SKU Name: app aecb10036fds
