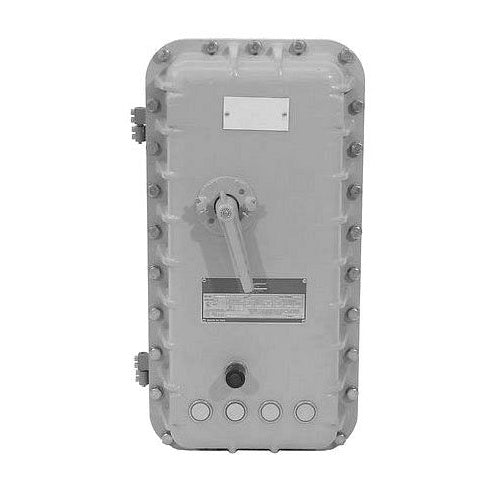

Appleton AEFB Circuit Breaker Enclosure

Overview

Appleton AEFB Circuit Breaker Enclosure

Product Specifications

• Catalog Description: NULL
• Category: 3 Pole Circuit Breaker Enclosures
• Full Technical Description: Explosionproof, Dust Ignitionproof, Water Tight, Bolted Type; Copper-Free Aluminum Material; Gray Epoxy Powder Coated Finish; Ae Circuit Breaker Used on; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 2 or 3 Breaker Pole(S); 600 Volt AC, 125/250 Volt DC Breaker Voltage Rating; 250 to 400 Amp Breaker Current Rating; Overall Dimension 16.381 Inch Width X 10.13 Inch Depth X 35 Inch Height; Outlet Size (4) 3 Inch; Application Hazardous Location, Overload and Short Circuit Protection, Control of Lighting and Power Circuit; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Circuit Breaker Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 781381857277
• SKU Name: app aefb

Resources

• Manufacturer Spec Sheet
