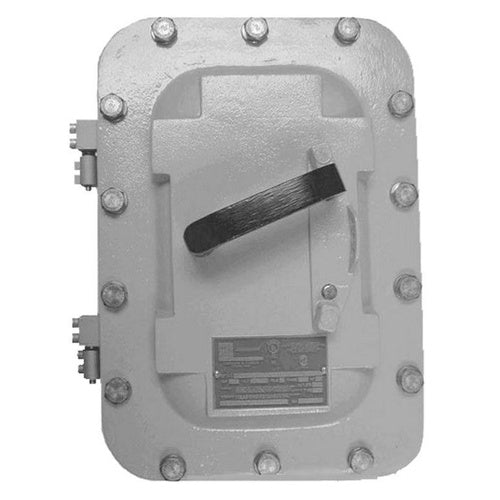

Appleton AELB82670C 2P 700A 600V Enclosed Circuit Breaker

Product Specifications

• UPC: 78138185838
• Current Rating: 700 AMPERE
• Interrupting Rating: 25000 AMPERE AT 600 VAC
• Number Of Poles: 2
• Hub Size: (2) 4 INCH
• Hub Location: DEAD END
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Enclosure Material: COPPER FREE CAST ALUMINUM
• Enclosure Finish: GRAY EPOXY POWDER COATED
• Shaft/Handle Material: STAINLESS STEEL
• Approval: CSA C22.2
• Catalog Number: AELB82670C
• Brand Name: Appleton[R]
• Model: AE
• Type: BOLTED ENCLOSURE
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Breaker Type: CUTLER HAMMER, MD
• Trip Type: NON INTERCHANGEABLE
• Voltage Rating: 600 VAC, 125/250 VDC
• Catalog Description: ENCLOSED CIRCUIT BREAKER, TYPE BOLTED ENCLOSURE, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, BREAKER TYPE CUTLER-HAMMER, MDL, TRIP TYPE NON-INTERCHANGEABLE, VOLTAGE RATING 600 V, CURRENT RATING 700 AMPERE, INTERRUPTING RATING 65000 AMPERE AT 240 VAC, 50000 AMPERE AT 480 VAC, 25000 AMPERE AT 600 VAC, NUMBER OF POLES 2, HUB SIZE (2) 4 INCH, HUB LOCATION DEAD END, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH GRAY EPOXY POWDER COATED, SHAFT/HANDLE MATERIAL STAINLESS STEEL, APPROVAL UL 1203, CSA C22.2, MATERIAL NEOPRENE (O-RING), STAINLESS STEEL (HINGES)
• Category: Enclosed 2 Pole Circuit Breakers
• Full Technical Description: Bolted Enclosure Type; (2) 4 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC, 125/250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 25000 Amp at 600 Volt AC Interrupting Rating; 700 Amp Current Rating; 2 Pole(S); Explosionproof, Dust Ignitionproof, Water Tight; Gray Epoxy Powder Coated Enclosure Finish; Cutler Hammer, Mdl Breaker Type; Non-Interchangeable Trip Type; Stainless Steel Shaft Shaft/Handle Material; Frame Rating 800 Amp; Enclosure Size 700 to 800 Amp; Material Stainless Steel (Cover Bolt/Hinge/Breaker), Neoprene (O-ring); App
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Enclosed Circuit Breaker
• Unspsc: 39121601
• UPC 12 Digit: 781381858380
• SKU Name: app aelb82670c
