Overview

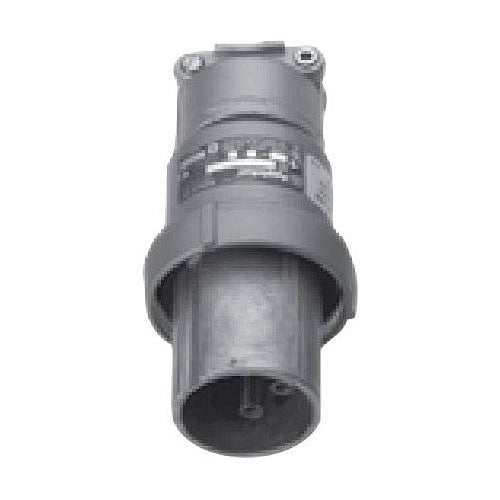

Appleton AEP3461 30A 3-Wire 4-Pole AE Series Weatherproof Pin & Sleeve Plug, Industrial Grade

Product Specifications

• Brand: Appleton Electric
• Manufacturer: Appleton Electric
• Manufacturer Part Number: AEP3461
• UPC: 78138113600
• Catalog Number: AEP3461
• Product Type: Pin & Sleeve Plug
• Series/Family: AE Series / AEP Product Series
• Amperage Rating: 30 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 4
• Number of Wires: 3
• Grounding Style: 2 (Shell + Extra Pole)
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Case Material: Metallic
• Constructional Feature: Weatherproof
• Terminal Type: Crimp
• Wire Size Range: 14 AWG to 8 AWG
• Cable Outside Diameter: 0.625" – 0.75"
• Built-in Strain Relief: Yes
• Approvals: UL Listed
• Application: Industrial and commercial power connections for motors, pumps, generators, and heavy-duty equipment
• Full Technical Description: Appleton AEP3461 is a 30A industrial pin-and-sleeve plug with a 3-wire, 4-pole configuration. It features epoxy powder-coated copper-free aluminum construction, weatherproof sealing, and built-in strain relief. Rated for 600VAC / 250VDC, it provides secure, reliable connections for industrial environments that require durable power distribution solutions.
