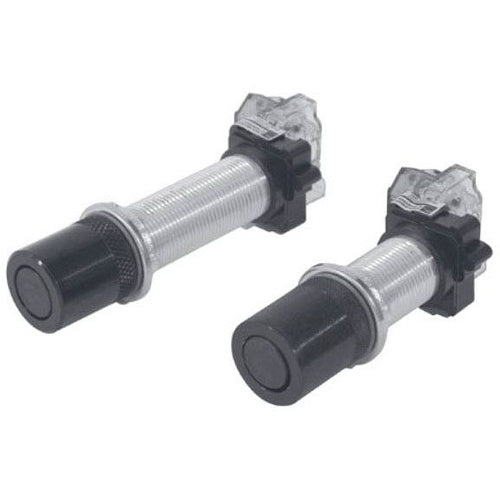

Appleton AEPBC-L 1-Normally Closed Black Pushbutton

Overview

Appleton AEPBC-L 1-Normally Closed Black Pushbutton

Product Specifications

• UPC: 78138191176
• Additional Information: BARREL TYPE LONG
• Catalog Number: AEPBC-L
• Brand Name: Appleton.
• Type: FLUSH
• Size: 3/4 INCH
• Operation Type: MOMENTARY
• Contact Configuration: 1NC
• Cap/Lens Color: BLACK
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Catalog Description: EXPLOSIONPROOF NON-ILLUMINATED PUSHBUTTON, TYPE LONG BARREL, OPERATION TYPE MOMENTARY, CONTACT CONFIGURATION 1NC, CONTACT RATING 600 VAC 10 AMPERE, CAP/LENS COLOR BLACK, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203/E77137, CSA C22.2, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, EXPLOSIONPROOF, APPLICATION HAZARDOUS LOCATION
• Category: Push Button Complete Assemblies
• Full Technical Description: Single, Long Barrel Type; 1NC Contact Configuration; Momentary Operation Type; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Black Cap/Lens Color; Overall Dimension 4.75 Inch Length X 2 Inch Width; Material Stainless Steel (Shaft); Application Hazardous Location; Applicable Standard Nec/Cec; AEP Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Non Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 781381911764
• SKU Name: app aepbcl
