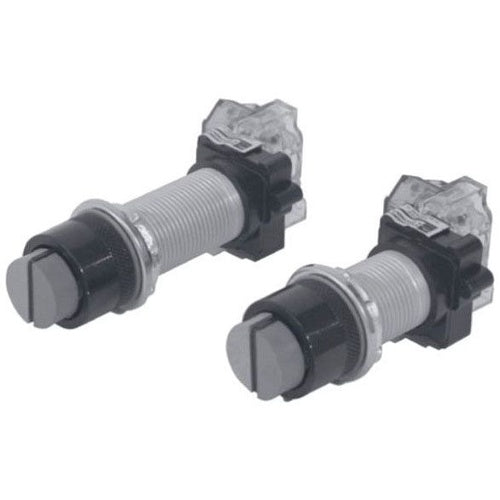

Appleton AEPDBBB 2-Normally Open St Black/Black Dual Pushbutton

Product Specifications

• Catalog Description: EXPLOSIONPROOF DUAL NON-ILLUMINATED PUSHBUTTON, TYPE SHORT BARREL, OPERATION TYPE MOMENTARY, CONTACT CONFIGURATION 2NO, CONTACT RATING 600 VAC 10 AMPERE, CAP/LENS COLOR BLACK/BLACK, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203/E77137, CSA C22.2, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, EXPLOSIONPROOF, APPLICATION HAZARDOUS LOCATION
• Category: Push Button Complete Assemblies
• Full Technical Description: Dual, Short Barrel Type; 2NO Contact Configuration; Momentary Operation Type; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Black/Black Cap/Lens Color; Overall Dimension 3.25 Inch Length X 2 Inch Width; Material Stainless Steel (Shaft); Application Hazardous Location; Applicable Standard Nec/Cec; AEP Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Non Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 781381911856
• SKU Name: app aepdbbb

Resources

• Manufacturer Spec Sheet
