Overview

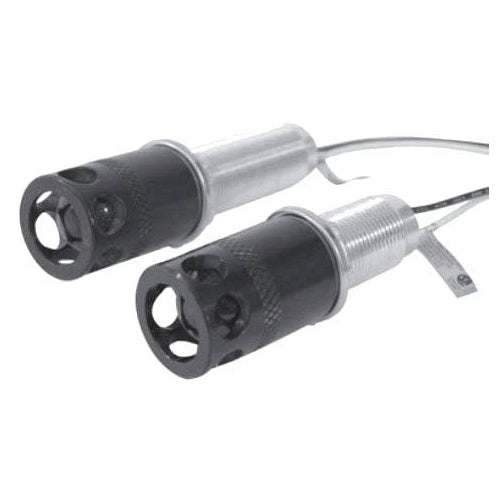

Appleton AEPLG2C 240V Clear Pilot Light

Product Specifications

• UPC: 78138191336
• Additional Information: BARREL TYPE SHORT
• Catalog Number: AEPLG2C
• Brand Name: Appleton.
• Type: GUARDED
• Constructional Feature: EXPLOSION PROOF
• Lamp Input Type: 240/120 V TRANSFORMER
• Lens Color: CLEAR
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Application: HAZARDOUS LOCATION
• Catalog Description: EXPLOSIONPROOF PILOT LIGHT, TYPE GUARDED, SHORT BARREL, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, LAMP INPUT TYPE 240/120 VAC TRANSFORMER, LENS STYLE/SIZE 1.25 INCH DIA, LENS COLOR CLEAR, LENS MATERIAL GLASS, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPLICATION HAZARDOUS LOCATION, APPROVAL UL 1203/E77137, CSA C22.2
• Category: Pilot Light Complete Assemblies
• Full Technical Description: Short Barrel, Guarded Type; Shot Blast Copper-Free Sand Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; Hazardous Location Application; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Explosionproof; 240 Volt AC Transformer With 120 Volt AC Lamp Lamp Input Type; Glass Lens Material; Clear Lens Color; Overall Length 3.73 Inch; Used on Acsew Control Operator; Applicable Standard Nec/Cec; AEPL Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Indicating Light
• Unspsc: 39121534
• UPC 12 Digit: 781381913362
• SKU Name: app aeplg2c

Resources

• Manufacturer Spec Sheet
