Overview

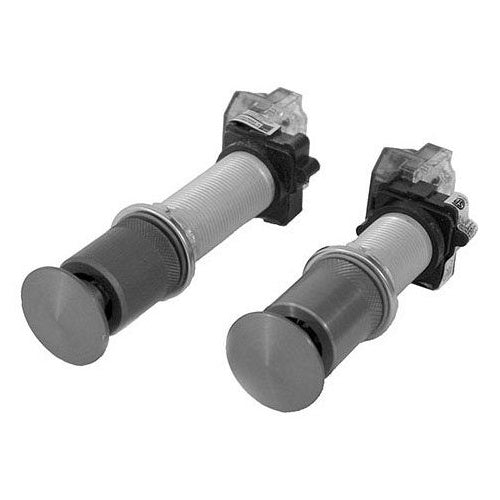

Appleton AEPMCREL 1-Normally Open-1-Normally Closed Red Mushroom Pushbutton

Product Specifications

• UPC: 78138191456
• Additional Information: BARREL TYPE LONG
• Catalog Number: AEPMCREL
• Brand Name: Appleton.
• Type: MUSHROOM
• Size: 3/4 INCH
• Operation Type: MAINTAINED
• Contact Configuration: 1NO-1NC
• Cap/Lens Color: RED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Catalog Description: EXPLOSIONPROOF NON-ILLUMINATED PUSHBUTTON, TYPE MUSHROOM, LONG BARREL, OPERATION TYPE MAINTAINED, CONTACT CONFIGURATION 1NO-1NC, CONTACT RATING 600 VAC 10 AMPERE, CAP/LENS COLOR RED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203/E77137, CSA C22.2, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, EXPLOSIONPROOF, APPLICATION HAZARDOUS LOCATION
• Category: Push Button Complete Assemblies
• Full Technical Description: Mushroom Head, Long Barrel Type; 1NO-1NC Contact Configuration; Maintained Operation Type; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Red Cap/Lens Color; Overall Dimension 5.38 Inch Length X 2 Inch Width; Material Stainless Steel (Shaft); Application Hazardous Location; Applicable Standard Nec/Cec; AEPMC Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Non Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 781381914567
• SKU Name: app aepmcrel
