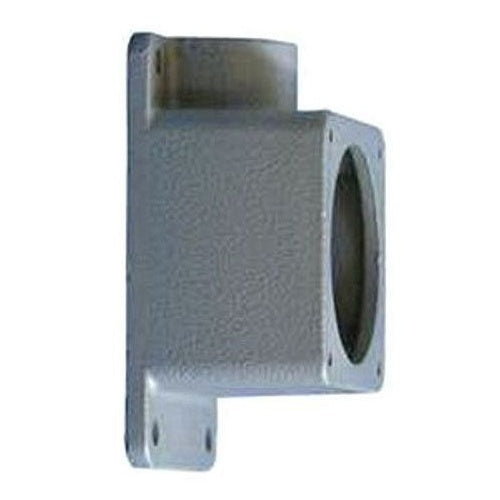

Appleton AERH13 Aluminum Mounting Unilet

Overview

Appleton AERH13 Aluminum Mounting Unilet

Product Specifications

• UPC: 78138122958
• Approval: UL 1682/1686
• Used On: Pin and Sleeve Receptacle
• Additional Information: Application Welder, Generator, Compressor, Shipping Docks, Ports, Ship to Store
• Catalog Number: AERH13
• Brand Name: Powertite[R]
• Model: AE
• Type: With Front Opening
• Device Rating: 30 Ampere
• Body Material: Epoxy Powder Coated Copper Free Aluminum
• Number Of Mounting Lugs: 4
• Hub Size: 1/2 Inch
• Catalog Description: PIN AND SLEEVE RECEPTACLE MOUNTING BOX, TYPE WITH FRONT OPENING, DEVICE RATING 30 AMPERE, BODY MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM, NUMBER OF MOUNTING LUGS 4, HUB SIZE 1/2 INCH, APPROVAL UL 1682/1686, USED ON PIN AND SLEEVE RECEPTACLE, CONTACT MATERIAL BRASS, INSULATIONBLOCK MATERIAL FIBERGLASSREINFORCEDPHENOLIC, APPLICATION WELDER, GENERATOR, COMPRESSOR, SHIPPING DOCKS, PORTS, SHIP TO STORE
• Category: Pin & Sleeve Devices
• Full Technical Description: With Front Opening Type; Pin and Sleeve Receptacle Used on; 1/2 Inch Hub Size; UL 1682 Approval; Epoxy Powder Coated Copper-Free Aluminum Body Material; 600 Volt AC, 250 Volt DC, 30 Amp Device Rating; Constructional Feature Weatherproof; Wire Size 14 to 8 AWG; Application Welder, Generator, Compressor, Pump, Shipping Dock, Port, Ship to Shore; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Back Box
• Unspsc: 39121303
• UPC 12 Digit: 781381229586
• SKU Name: app aerh13

Resources

• Manufacturer Spec Sheet
