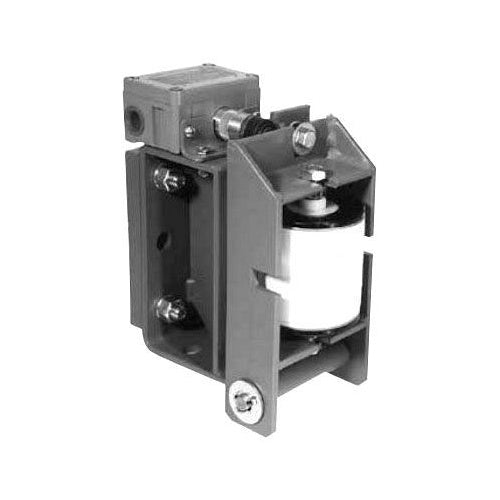

Appleton AFAX2 Belt Alignment Switch 2DPDT

Overview

Appleton AFAX2 Belt Alignment Switch 2DPDT

Product Specifications

• UPC: 78138174171
• Contact Configuration: (1) DPDT
• Cable/Conduit Entry: 1/2 INCH NPT HUB
• Operating Temperature: -40 TO 150 DEG F
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7C/7D/9E/9F/9G
• Enclosure Material: STEEL
• Enclosure Finish: ENAMEL PAINTED
• Catalog Number: AFAX2
• Brand Name: Appleton[R]
• Model: AFAX
• Type: LARGE ROLLER STYLE
• Voltage Rating: 250 VAC/VDC
• Current Rating: 10 AMPERE
• Operator Type: ROLLER
• Operator Size: 3.5 INCH
• Catalog Description: CONVEYOR BELT ALIGNMENT SWITCH, TYPE LARGE ROLLER STYLE, VOLTAGE RATING 250 VAC/VDC, CURRENT RATING 10 AMPERE, OPERATOR TYPE ROLLER, OPERATOR SIZE 3.5 INCH H (ROLLER), CONTACT CONFIGURATION (1) DPDT, CABLE/CONDUIT ENTRY 1/2 INCH NPT HUB, OPERATING TEMPERATURE -40 TO 65 DEG C, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, NEMA 9E/9F/9G, ENCLOSURE MATERIAL STEEL, ENCLOSURE FINISH ENAMEL PAINTED, MOUNTING 1 INCH FROM BELT, APPROVAL UL 508/698, CSA C22.2
• Category: Fusible Heavy Duty Safety Switches
• Full Technical Description: Large Roller Style Type; (1) DPDT Contact Configuration; Steel Enclosure Material; UL 508/698, CSA C22.2 Approval; 125 Volt AC, 250 Volt DC Voltage Rating; Class II Div 1 and 2 Group E F G, NEMA 9 Enclosure; 10 Amp Current Rating; -40 to 149 Deg F Operating Temperature; Spring Loaded Arm With Roller, Stainless Steel Shaft Operator Type; Enamel Painted Enclosure Finish; 1/2 Inch Threaded Cable/Conduit Entry; Red Epoxy Powder Coated Roller Operator Color; 1.25 Inch Diameter X 9.75 Inch Height (Roller) Operator Size; Switch Electric Rating 2; Material Steel (Roller), Stainless Steel (Shaft); Application Emergency Stop Switch, Magnetic Motor Starter, Alarm/Computer Interface, Steel Mill, Mining, Warehouse, Loading Dock; Applicable Standard Nec/Cec; AFAX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conveyor Belt Alignment Switch
• Unspsc: 39122240
• UPC 12 Digit: 781381741712
• SKU Name: app afax2
