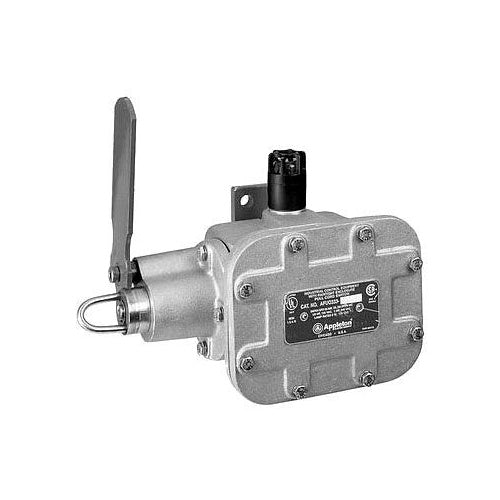

Appleton AFU033360 Pull Cord Switch

Overview

Appleton AFU033360 Pull Cord Switch

Product Specifications

• UPC: 78138174127
• Cable/Conduit Entry: (2) 1 Inch Hub
• Body Material: Cast Aluminum
• Body Finish: Peened
• Size: 11-3/16 Inch L x 7-7/8 Inch D x 5-1/2 Inch H
• Enclosure: NEMA 3/3R/4/4X/12
• Application: Ordinary Location
• Approval: UL 508/698/1203
• Additional Information: Switch Temperature Range -40 to 150 Deg F
• Catalog Number: AFU033360
• Model: AFU
• Type: Single End Left Hand, Pull Cord
• Operator Type: Flag Arm
• Voltage Rating: 120/240/480/600 VAC, 115/230 VDC
• Current Rating: 15 Ampere at 120/240/480/600 VAC, 0.8 Ampere at 115 VDC, 0.4 Ampere at 230 VDC
• Contact Configuration: 2NO-2NC Double Break
• Operating Force: 25 Lb
• Catalog Description: CONVEYOR CONTROL SWITCH, TYPE SINGLE END LEFT HAND, PULL CORD, OPERATOR TYPE FLAG ARM, VOLTAGE RATING 120/240/480/600 VAC, 115/230/250 VDC, CURRENT RATING 15 AMPERE AT 120/240/480/600 VAC, 0.8 AMPERE AT 250 VAC/115 VDC, 0.4 AMPERE AT 230 VDC, CONTACT CONFIGURATION 2NO-2NC DOUBLE BREAK, OPERATING FORCE 25 LB, CABLE/CONDUIT ENTRY (2) 1 INCH HUB, BODY MATERIAL CAST ALUMINUM, BODY FINISH PEENED, SIZE 11-3/16 INCH L X 7-7/8 INCH D X 5-1/2 INCH H, ENCLOSURE NEMA 3/3R/4/4X/12, APPLICATION ORDINARY LOCATION, APPROVAL UL 508/698/1203, TEMPERATURE RANGE -40 TO 150 DEG F
• Category: Cable Pull Switches & Accessories
• Full Technical Description: Single End Left Hand, Pull Cord Type; 7.88 Inch Width X 9.75 Inch Height Size; 2NO-2NC Double Break Contact Configuration; UL 508/698/1203, CSA C22.2 Approval; Ordinary Location, Conveyor Line, Crane, Unloader, Bulk Handling System, Steel Mill, Mining Ore and Coal Handling Operation, Automotive and Other Assembly Line, Warehouse, Loading Dock, Industry Application; 120/240/480/600 Volt AC, 115/230 Volt DC Voltage Rating; NEMA 3/4/4X/12 Enclosure; 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC Current Rating; Cast Aluminum Body Material; Flag Arm Operator Type; Peened (Enclosure) Body Finish; 25 Pound Operating Force; (2) 1 Inch Conduit (Top and Bottom) Cable/Conduit Entry; Power Rating 0.5 HP at 120 Volt AC, 1 HP at 240 Volt AC; Temperature Rating -40 to 151 Deg F; Mater
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conveyor Control Switch
• Unspsc: 39122239
• UPC 12 Digit: 781381741279
• SKU Name: app afu033360

Resources

• Manufacturer Spec Sheet
