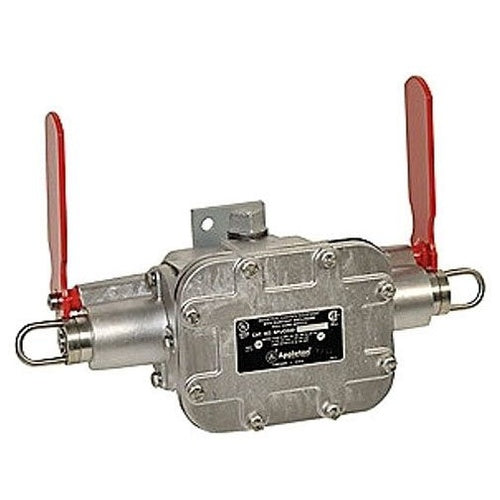

Appleton AFU033366 Pull Cord Switch

Overview

Appleton AFU033366 Pull Cord Switch

Product Specifications

• UPC: 78138174134
• Operating Force: 25 Pound
• Cable/Conduit Entry: (2) 1 Inch Hub
• Body Material: Cast Aluminum
• Body Finish: Peened
• Size: 15-1/2 Inch Length x 7-7/8 Inch Depth x 5-1/2 Inch Height
• Enclosure: NEMA 3/3R/4/4X/12
• Application: Ordinary Location
• Approval: UL 508/698/1203
• Additional Information: Temperature Rating -40 to 150 Deg F (Switch)
• Catalog Number: AFU033366
• Brand Name: Appleton
• Model: AFU
• Type: Double End, Pull Cord
• Operator Type: Flag Arm
• Voltage Rating: 120/240/480/600 Volt AC, 115/230 Volt DC
• Current Rating: 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC
• Contact Configuration: 2NO-2NC Double Break (Each End)
• Catalog Description: AFU SERIES DOUBLE END EMERGENCY CABLE PULL SWITCH, MATERIAL: CAST ALUMINUM CASE, ENCLOSURE: NEMA 3, 4, 4X, 12, CONTACT CONFIGURATION: NO/NC-DB, TCDB, CONTACT RATING: AC: 15 AMP AT 120, 240, 480, 600 VAC, DC: 0.8 AMP AT 115 VDC, 0.4 AMP
• Category: Cable Pull Switches & Accessories
• Full Technical Description: Double End, Pull Cord Type; 7.88 Inch Width X 9.75 Inch Height Size; 2NO-2NC Double Break (Each End) Contact Configuration; UL 508/698/1203, CSA C22.2 Approval; Ordinary Location, Conveyor Line, Crane, Unloader, Bulk Handling System, Steel Mill, Mining Ore and Coal Handling Operation, Automotive and Other Assembly Line, Warehouse, Loading Dock, Industry Application; 120/240/480/600 Volt AC, 115/230 Volt DC Voltage Rating; NEMA 3/4/4X/12 Enclosure; 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC Current Rating; Cast Aluminum Body Material; Flag Arm Operator Type; Peened (Enclosure) Body Finish; 25 Pound Operating Force; (2) 1 Inch Conduit (Top and Bottom) Cable/Conduit Entry; Power Rating 0.5 HP at 120 Volt AC, 1 HP at 240 Volt AC; Temperature Rating -40 to 151 Deg F; Material Stainless Steel (Actuator Shaft/Retaining Ring/Clevis Loop/Torsion Spring), Red Epoxy Paint Steel (Flag Arm); Applicable Standard Nec/Cec; AFU Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conveyor Control Switch
• Unspsc: 39122239
• UPC 12 Digit: 781381741347
• SKU Name: app afu033366
