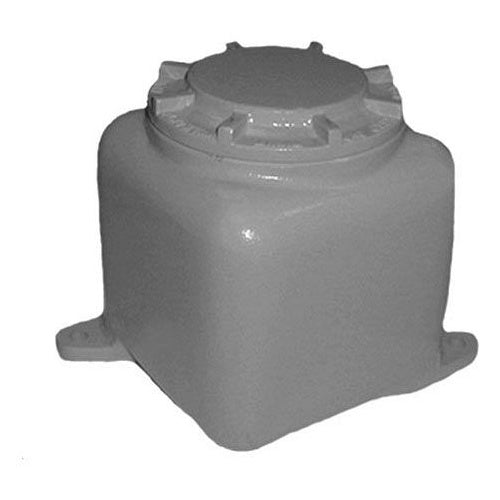

Appleton AGUB976A 9X7X6 Aluminum Meter Enclosure

Overview

Appleton AGUB976A 9X7X6 Aluminum Meter Enclosure

Product Specifications

• UPC: 78138188619
• Size: 9.25 Inch W x 6 Inch D x 7.5 Inch H
• Mounting Hardware: Feet
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Used On: AGUB Series Instrument and Meter Enclosure
• Approval: UL 886, CSA C22.2
• Additional Information: Cover Opening Size 7 Inch
• Catalog Number: AGUB976A
• Model: AGUB
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Hub Size: 2 Inch
• Cover Type: Solid
• Body Material: Copper Free Aluminum
• Body Finish: Corrosion Resistant Gray Epoxy Powder Coated
• Cover Material: Corrosion Resistant Gray Epoxy Powder Coated Copper Free Aluminum
• Catalog Description: INSTRUMENT AND METER BOX WITH COVER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, NUMBER OF HUBS 1, HUB SIZE 2 INCH, COVER TYPE SOLID, BODY MATERIAL COPPER-FREE ALUMINUM, BODY FINISH GRAY POWDER EPOXY COATED, COVER MATERIAL COPPER-FREE ALUMINUM, SIZE 9.25 INCH W X 6 INCH D X 7.5 INCH H, MOUNTING HARDWARE FEET, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/BCD/9EFG, APPROVAL UL 886/1203, CSA C22.2, UL ( CANADA)
• Category: Meter Boxes
• Full Technical Description: 8.5 Inch Width X 8.44 Inch Depth X 10.25 Inch Height Size; 2 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Solid Cover Type; Copper-Free Aluminum Body Material; Explosionproof, Dust Ignitionproof; Foot Mounting Hardware; Gray Epoxy Powder Coated Copper-Free Aluminum Cover Material; Gray Epoxy Powder Coated Body Finish; Inside Dimension 9.25 Inch Width X 6 Inch Depth X 7.5 Inch Height; Cover Opening Size 7 Inch; Cover Diameter 7.75 Inch; O-ring Material Neoprene; Application Hazardous Location; Applicable Standard Nec/Cec; AGUB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 781381886192
• SKU Name: app agub976a
