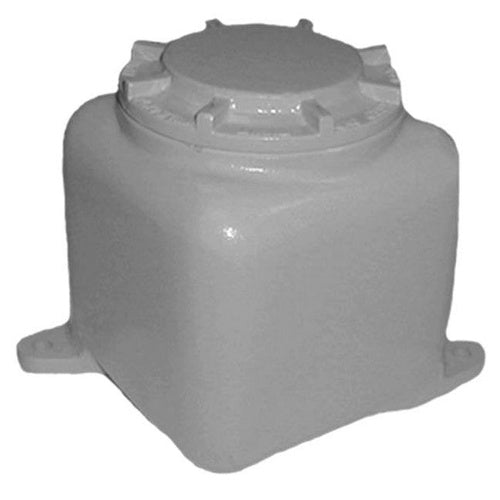

Appleton AGUBSW664A 6X6X4 Window Meter Enclosure

Product Specifications

• Part Number: AGUBSW664A
• UPC: 78138188632
• UPC: 781381886321
• Cover Material: CORROSION RESISTANT GRAY EPOXY POWDER COATED CAST COPPER FREE ALUMINUM
• Size: 6-1/2 INCH D X 7 INCH H
• Mounting Hardware: FEET
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Approval: UL 886, CSA C22.2
• Brand Name: Appleton[R]
• Model: AGUB
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Hub Size: 2 INCH
• Cover Type: WINDOW
• Body Material: CAST COPPER FREE ALUMINUM
• Body Finish: CORROSION RESISTANT GRAY EPOXY POWDER COATED
• Full Technical Description: 7 Inch Width X 6.5 Inch Depth X 7 Inch Height Size; 2 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Window Cover Type; Copper-Free Aluminum Body Material; Explosionproof, Dust Ignitionproof; Foot Mounting Hardware; Gray Epoxy Powder Coated Copper-Free Aluminum Cover Material; Gray Epoxy Powder Coated Body Finish; Inside Dimension 6.13 Inch Width X 4.25 Inch Depth X 6.13 Inch Height; Cover Opening Size 5.94 Inch; Cover Diameter 6.5 Inch; O-ring Material Neoprene; Application Hazardous Location; Applicable Standard Nec/Cec; AGUB Model
• Manufacturer: Appleton Electric
• UNSPSC: 39121314
