Appleton ALA-75 3/4" Flex Fixture Hanger

Overview

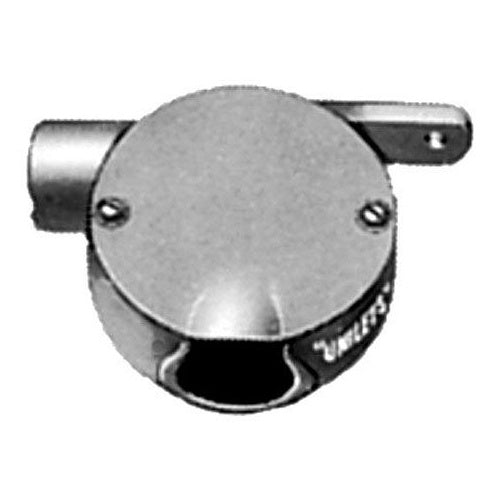

Appleton ALA-75 3/4" Flex Fixture Hanger

Product Specifications

• UPC: 78138114190
• Fixture Type: FLUORESCENT, HID, INCANDESCENT
• Additional Information: AVAILABLE WITH CONNECTION BLOCK FOR WIRING OF FIXTURE LEADS
• Catalog Number: ALA-75
• Brand Name: UNILETS[R]
• Model: AL
• Number Of Hubs: 2
• Hub Size: 3/4 INCH
• Hub Location: (1) BOTTOM, (1) ONE SIDE
• Fixture Stem Type: 1/2 OR 3/4 INCH BJ/CJC, BALL/CUSHION
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED 32510 ASTM A47-77 MALLEABLE IRON BODY, ZINC ELECTROPLATED STEEL COVER
• Catalog Description: RIGID CONDUIT LIGHTING FIXTURE HANGER BODY, TYPE CUSHION FLEXIBLE FIXTURE HANGER, FIXTURE TYPE FLUORESCENT, HID, INCANDESCENT, SWING ANGLE 20 DEG, NUMBER OF HUBS 1, HUB LOCATION SIDE, FEED THROUGH, MATERIAL ZINC ELECTROPLATE MALLEABLE IRON BODY, STEEL COVER, APPROVAL UL E109438
• Category: Lighting Accessories
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Steel (Cover) Material; 1 Hub(S); UL Approval; Side Hub Location; LED Fixture Type; Conduit Size 3/4 Inch; Used on Threaded Imc/Rigid Metal Conduit; Applicable Standard Nec/Cec; ALA Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pendant Fixture Hanger Body
• Unspsc: 39111817
• UPC 12 Digit: 781381141901
• SKU Name: app ala75

Resources

• Manufacturer Spec Sheet
