Overview

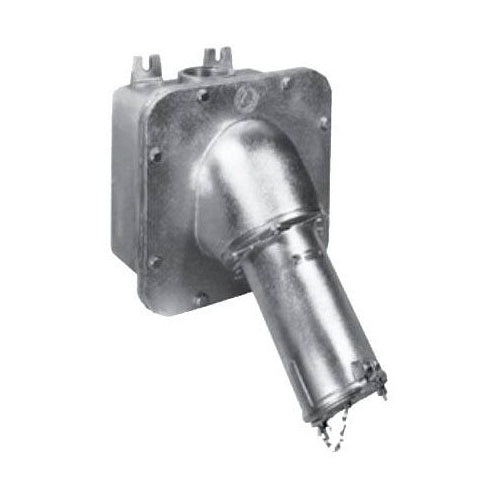

Appleton AJAC400 400 Amp 4" Unilet

Product Specifications

• UPC: 78138129526
• Approval: UL 1682/1686, UL50E, CSA C22.2
• Used On: Pin and Sleeve Receptacle
• Additional Information: Application DesignedtoSupplyPowertoPortableorFixed ElectricalEquipmentSuchasMotorGeneratorUnits,Welders,Pumps, Compressors,CellularRelayStations,andSimilarApparatus; IdealforUseonShippingDocks,Ports,andOther ShiptoShore Applications; SuitableforUseinLocat
• Catalog Number: AJAC400
• Brand Name: Powertite[R]
• Model: AJA
• Type: With Angle Opening
• Device Rating: 400 Ampere
• Body Material: Epoxy Powder Coated Copper Free Aluminum
• Number Of Mounting Lugs: 4
• Hub Size: 4 Inch Feed Through
• Catalog Description: MOUNTING BOX WITH ANGLE ADAPTER, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 4 IN, CABLE ENTRY: (1) 4 IN HUB, KNOCKOUTS: NO, FINISH: EPOXY POWDER COAT, FOR POWERTITE 400 AMP RECEPTACLES
• Category: Pin & Sleeve Devices
• Full Technical Description: With Angle Opening Type; Pin and Sleeve Receptacle Used on; 4 Inch Feed-Through Hub Size; UL 1682/1686/50E, UL (Canada and Us), CSA C22.2 Approval; Epoxy Powder Coated Copper-Free Aluminum Body Material; 600 Volt AC 50/400 Hertz, 250 Volt DC, 400 Amp Device Rating; 2 Mounting Lug(S); Temperature Rating -13 to 104 Deg F; Enclosure Rating NEMA 3/4/4X/Fb-1; Application Motor Generator Unit, Welder, Pump, Compressor, Cellular Relay Station, Ship to Shore; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Back Box
• Unspsc: 39121303
• UPC 12 Digit: 781381295260
• SKU Name: app ap20033ers

Resources

• Manufacturer Spec Sheet
