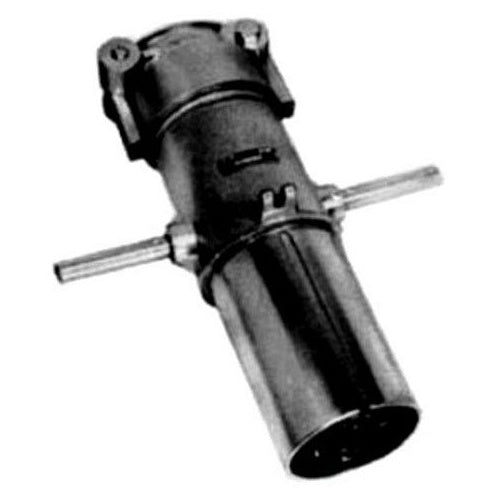

Appleton AP40134F 400A 3W4P Plug

Product Specifications

• UPC: 78138129562
• Grounding Style: 2, SHELL, EXTRA POLE
• Minimum Cable Outer Diameter: 2.5 INCH
• Maximum Cable Outer Diameter: 3 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: AP40134F
• Brand Name: Powertite.
• Type: POLARIZED
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC 3 PHASE, 250 VDC
• Current Rating: 400 AMPERE
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 2 PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALU
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2.5 Inch min. Cable Outer Diameter; 3 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 4 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 1.25 Inch; Hub Size 4 Inch; Finish Fiberglass Reinforced Polyester (Insulating Block); Operating Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381295628
• SKU Name: app ap40134f
