Overview

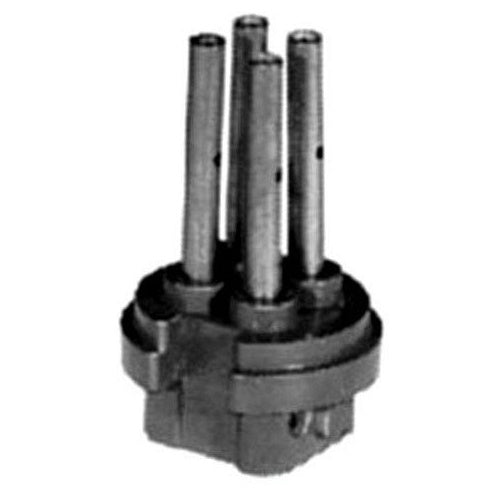

Appleton API6033 3W-3P Plug

Product Specifications

• UPC: 78138116599
• Grounding Style: 1, Shell
• Material: Copper Free Aluminum
• Approval: UL 1682/1686/50E, CSA C22.2
• Catalog Number: API6033
• Brand Name: Powertite[R]
• Type: Plug
• Constructional Feature: Raintight
• Voltage Rating: 600 VAC at 50 to 400 Hz, 250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 1 PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE
• Category: Pin & Sleeve Devices
• Full Technical Description: Plug Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 3 Pole(S); 1, Shell Grounding Style; POWERTITE[TM] Brand; Ambient Temperature Rating -13 to 104 Deg F; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Device Interior
• Unspsc: 39121402
• UPC 12 Digit: 781381165990
• SKU Name: app api6033

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
