Overview

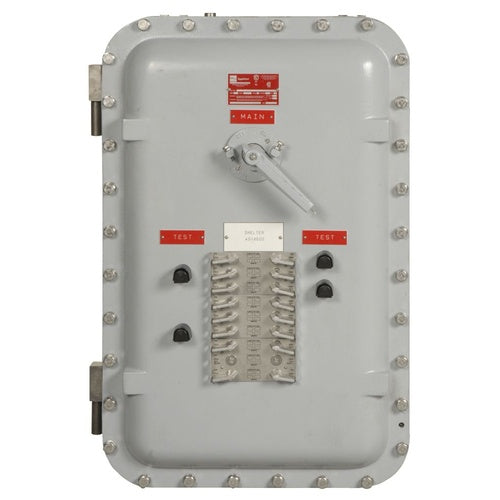

Appleton APPND14C30M1 100A Main Breaker 480V Panelboard

Product Specifications

• Catalog Description: EXPLOSIONPROOF CIRCUIT BREAKER POWER DISTRIBUTION PANELBOARD, VOLTAGE RATING 277/480 V, CURRENT RATING 100 AMPERE, NUMBER OF CIRCUITS 30, MAIN CIRCUIT CONFIGURATION 3 PHASE 4 WIRE, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH CORROSION RESISTANT GREY EPOXY POWDER COATED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, CLASS I ZONE 1 GROUP IIB, NEMA 4/4X/7BCD/9EFG, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, MOUNTING FEET, SIZE 21 INCH W X 13 INCH D X 42.94 INCH H, APPROVAL UL 1203, APPLICABLE STANDARD NEC, MATERIAL COPPER-FREE ALUMINUM (COVER, BREAKER OPERATOR), STAINLESS STEEL (HINGE, COVER BOLT), COPPER (BUS BAR), NEOPRENE (O-RING), APPLICATION HAZARDOUS LOCATION, CONSTRUCTION TYPE FRAME
• Category: Three Phase Assembled Circuit Breaker Power Distribution Panelboards
• Full Technical Description: 21 Inch Width X 13 Inch Depth X 42.94 Inch Height Size; Copper-Free Aluminum Enclosure Material; UL 1203 Approval; 277/480 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 Group Iib + H2, Class III, NEMA
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Circuit Breaker Panelboard
• Unspsc: 39121103
• UPC 12 Digit: 781381906012
• SKU Name: app appnd14c30m1

Resources

• Manufacturer Spec Sheet
