Product information
Overview

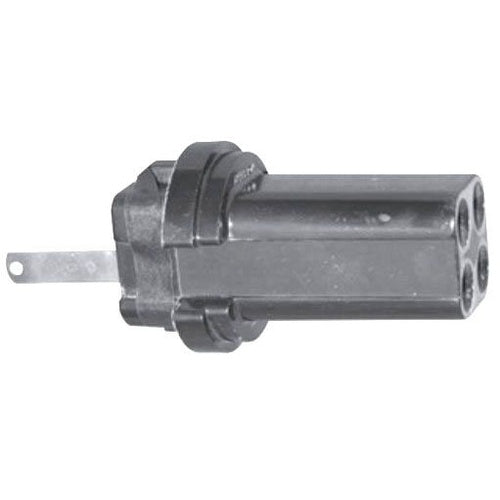

Appleton ARI3023 2W-3P Receptacle
Product Specifications
- UPC: 78138116637
- Catalog Number: ARI3023
- Brand Name: Appleton.
- Type: RECEPTACLE
- Voltage Rating: 600 VAC AT 50 TO 400 HZ, 250 VDC
- Current Rating: 30 AMPERE
- Number Of Poles: 3
- Number Of Wires: 2
- Grounding Style: 2, SHELL, EXTRA POLE
- Catalog Description: POWERTITE GROUNDING STYLE 2 RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MATERIAL: CO
- Category: Pin & Sleeve Devices
- Full Technical Description: Receptacle Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 3 Pole(S); 2, Shell, Extra Pole Grounding Style; POWERTITE[TM] Brand; Ambient Temperature Rating -30 to 104 Deg F; Enclosure Rating NEMA 3/4/4X; Used With Ebr/Ebrh/Jbr/MD2SR/Fsqc/ID2SR/Dbr Hazardous Interlocked Receptacle; Applicable Standard Nec/Cec
- Manufacturer: Appleton Electric
- Manufacturer Brand: Appleton Electric
- Sub Category: Pin and Sleeve Device Interior
- Unspsc: 39121406
- UPC 12 Digit: 781381166379
- SKU Name: app ari3023
