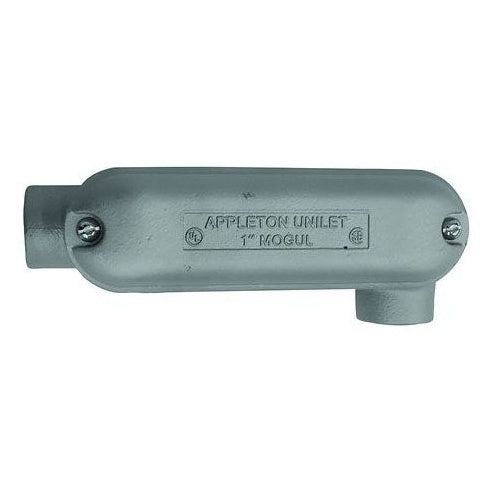

Appleton BC100-M 1" Malleable C Mogul Unilet (Body, Cover & Gasket)

Overview

Appleton BC100-M 1" Malleable C Mogul Unilet (Body, Cover & Gasket)

Product Specifications

• UPC: 78138145674
• Size: 9.81 Inch L x 2.38 Inch W x 2.75 Inch H
• Installation: Threaded
• Material: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron Body, Neoprene Gasket, Stainless Steel Screw
• Approval: UL 514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 31 Cu Inch; Application Pulling of Large and Heavy Conductor, Pulling Straight/45 Deg/90 Deg Angle Turn and/or Making Tap and Splice
• Catalog Number: BC100-M
• Brand Name: Unilet[R]
• Access Opening: Side
• Configuration: C
• Cover Type: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: MOGUL UNILETS TYPE C NEC 8X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1 IN, LENGTH: 9.81 IN, WIDTH: 2.38 IN, HEIGHT: 2-3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 9.81 Inch Length X 2.38 Inch Width X 2.75 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 1 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; Straight Hub Location; Side Access Opening; UNILETS[R] Brand; Wire Size (3) 2 AWG; Capacity 31 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381456746
• SKU Name: app bc100m

Resources

• Manufacturer Spec Sheet
