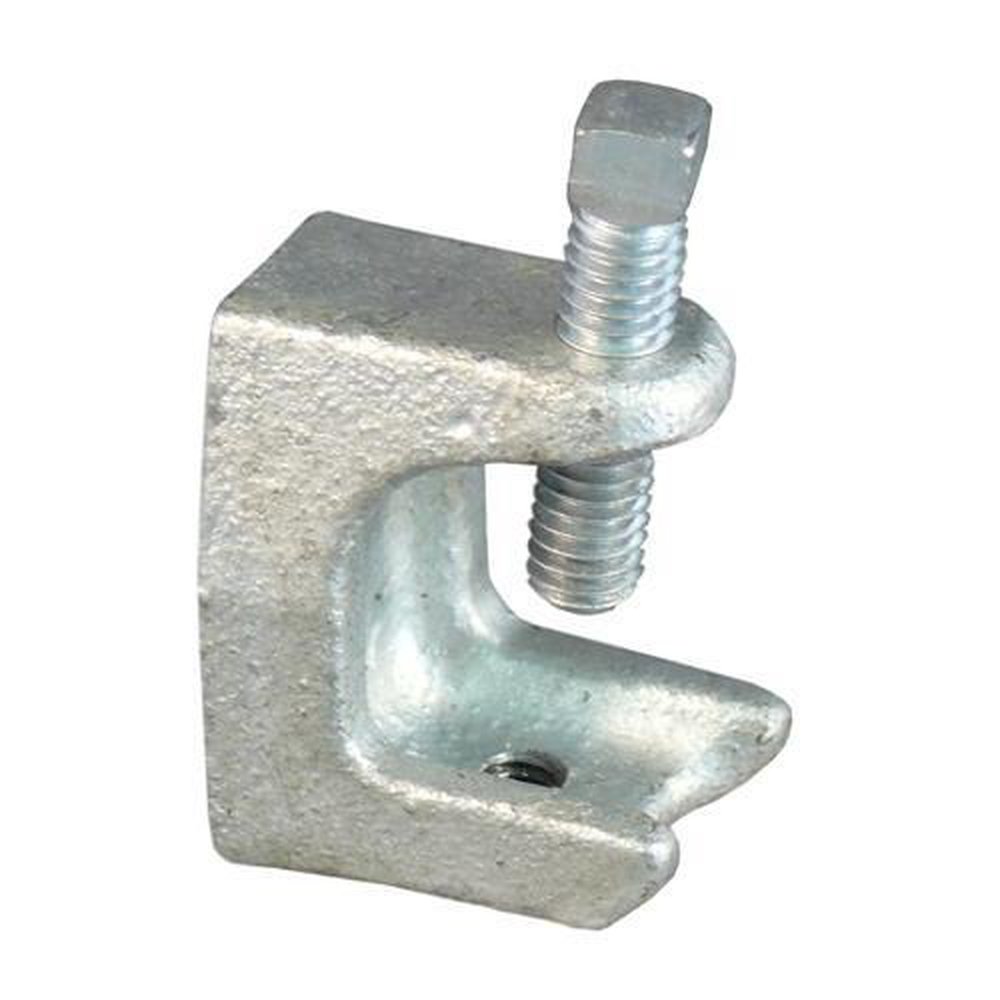

Appleton BH-500 1/4-20 Tapped Beam Clamp

Product Specifications

• UPC: 78138115670
• Application: Commercial and Industrial, Conduit Hanging System
• Additional Information: Overall Dimension 1 Inch Width x 1.63 Inch Height; Application Commercial, Industrial, Hazardous Location; Applicable Standard CSA, CEC
• Catalog Number: BH-500
• Type: Tapped
• Maximum Jaw Capacity: 0.94 Inch
• Supplied With Screw: Yes
• Screw Type: Square Head
• Screw Size: 1/4 Inch-20 TPI
• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Catalog Description: BEAM CLAMP, MATERIAL: MALLEABLE IRON, MAXIMUM LOAD: 335 LB, MAXIMUM JAW OPENING: 0.94 IN, FINISH: HOT DIPPED GALVANIZED, LENGTH: 1.63 IN, WIDTH: 1 IN, SET SCREW: 1/4-20, JAW WIDTH: 0.88 IN, STANDARD: CSA 065178, C22.2 NO. 18.4,, FOR PROVID
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Hot Dip Galvanized Finish; 0.94 Inch Max. Jaw Capacity; Commercial and Industrial, Conduit Hanging System, Ordinary/Hazardous Location Application; 335 Pound Load Capacity; 1/4 Inch-20 TPI Screw Size; Square Head Screw Type; Yes Supplied With Screw; Overall Dimension 1 Inch Width X 1.63 Inch Height; Jaw Depth 0.88 Inch; Applicable Standard CEC, CSA C22.2
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 781381156707
• SKU Name: app bh500
