Overview

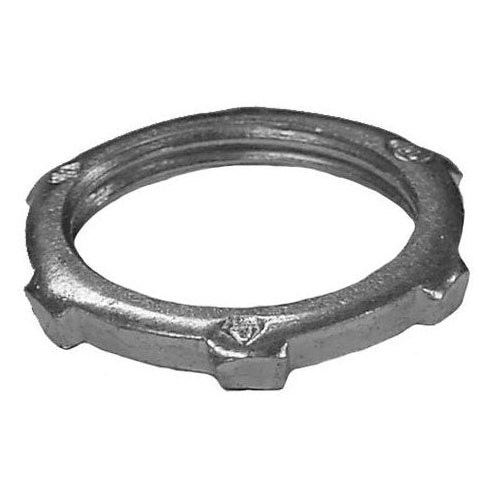

Appleton BL-500 5" Malleable Locknut

Product Specifications

• UPC: 78138115840
• Additional Information: Applicable Standard NEMA FB-1; Application Used to Secure an Ordinary Nut from Working Loose by Locking Itself when Screwed Down Tight
• Catalog Number: BL-500
• Model: BL
• Trade Size: 5 Inch
• Diameter: 6.69 Inch
• Thickness: 0.5 Inch
• Material: Steel
• Installation: Threaded
• Approval: UL 514B, CSA C22.2
• Catalog Description: LOCKNUT, MATERIAL OF CONSTRUCTION: STEEL, NUT TYPE: LOCKNUT, THREAD SIZE: 5 IN, HEIGHT: 0.50 IN, WIDTH: 6.69 IN, SIZE: 5 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA CERTIFIED 065178, NEMA FB-1, FOR RIGID CONDUIT A
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated Steel Material; Threaded Installation; UL 514B, CSA C22.2 Approval; 6.69 Inch Diameter; 0.5 Inch Thickness; 5 Inch Trade Size; Used on Imc/Rigid Conduit; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Locknut
• Unspsc: 31161716
• UPC 12 Digit: 781381158404
• SKU Name: app bl500

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
