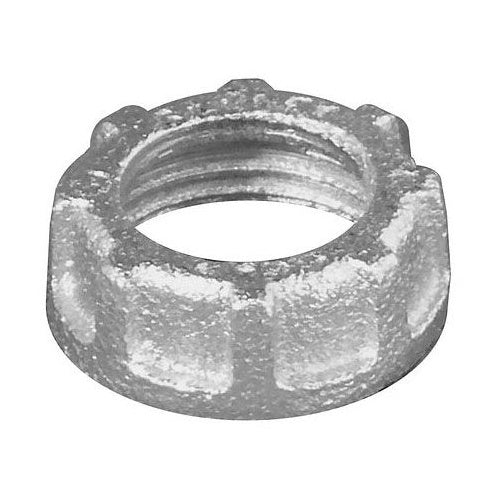

Appleton BU-100 1" Malleable Bushing

Overview

Appleton BU-100 1" Malleable Bushing

Product Specifications

• UPC: 78138116170
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard NEMA FB-1; Application Commercial and Industrial
• Catalog Number: BU-100
• Type: Female Threaded
• Trade Size: 1 Inch
• Diameter: 1.56 Inch
• Height: 0.5 Inch
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Catalog Description: CONDUIT BUSHING, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, CONNECTION: THREADED, DIMENSIONS: 0.44 IN HEIGHT X 1.19 IN DIAMETER, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, FOR USE WITH LOCKN
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Zinc Electroplated Malleable Iron Material; 0.5 Inch; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1.56 Inch Diameter; 1 Inch Trade Size; Non-Insulated Throat Type; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381161701
• SKU Name: app bu100
