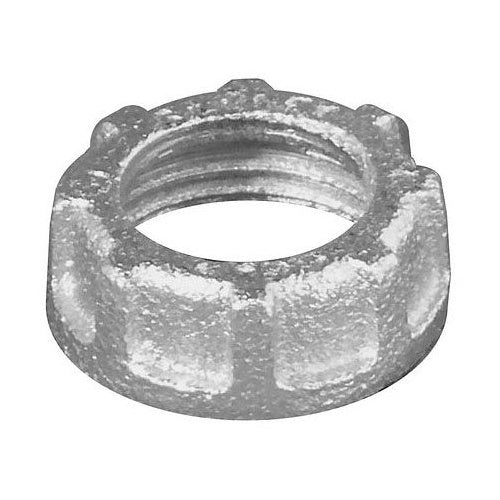

Appleton BU-100I 1" Malleable Insulated Bushing
Product Specifications
- UPC: 78138116175
- Approval: UL 514B, CSA C22.2
- Used On: IMC/Rigid Conduit
- Additional Information: Applicable Standard NEMA FB-1; Application Commercial and Industrial
- Catalog Number: BU-100I
- Type: Female Threaded
- Trade Size: 1 Inch
- Diameter: 1.75 Inch
- Height: 0.63 Inch
- Throat Type: Insulated
- Temperature Rating: 150 Deg C
- Material: Zinc Electroplated Malleable Iron
- Catalog Description: INSULATED CONDUIT BUSHING, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, CONNECTION: THREADED, TEMPERATURE RATING: 150 DEG C, DIMENSIONS: 0.63 IN HEIGHT X 1-3/4 IN DIAMETER, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3
- Category: Rigid Conduit Fittings - Steel
- Full Technical Description: Threaded Female Type; Zinc Electroplated Malleable Iron Material; 0.63 Inch; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1.75 Inch Diameter; 302 Deg F Temperature Rating; 1 Inch Trade Size; Insulated Throat Type; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
- Manufacturer: Appleton Electric
- Manufacturer Brand: Appleton Electric
- Sub Category: Rigid/EMT Conduit Bushing
- Unspsc: 39121312
- UPC 12 Digit: 781381161756
- SKU Name: app bu100i
