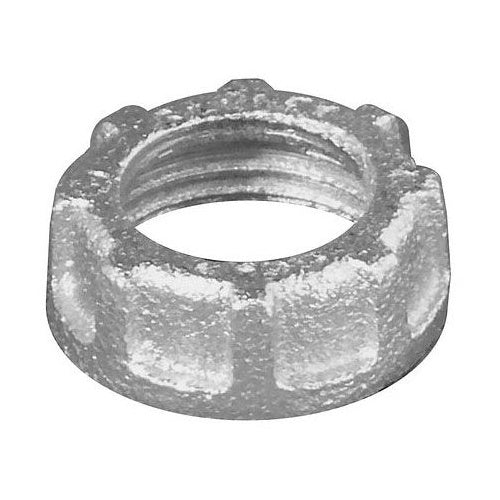

Appleton BU-50 1/2" Malleable Bushing

Overview

Appleton BU-50 1/2" Malleable Bushing

Product Specifications

• UPC: 78138116150
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Application Used with a Locknut to Terminate Rigid Metal Conduit or IMC Conduit to a Box or Enclosure
• Catalog Number: BU-50
• Model: BU
• Type: Threaded Female
• Trade Size: 1/2 Inch
• Diameter: 1.03 Inch
• Height: 0.38 Inch
• Material: Zinc Electroplated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Catalog Description: CONDUIT BUSHING, SIZE: 1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, CONNECTION: THREADED, DIMENSIONS: 0.38 IN HEIGHT X 1.03 IN DIAMETER, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, FOR USE WITH LOCK
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Zinc Electroplated Malleable Iron Material; 0.38 Inch; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1.03 Inch Diameter; 1/2 Inch Trade Size; Non-Insulated Throat Type; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381161503
• SKU Name: app bu50
