Overview

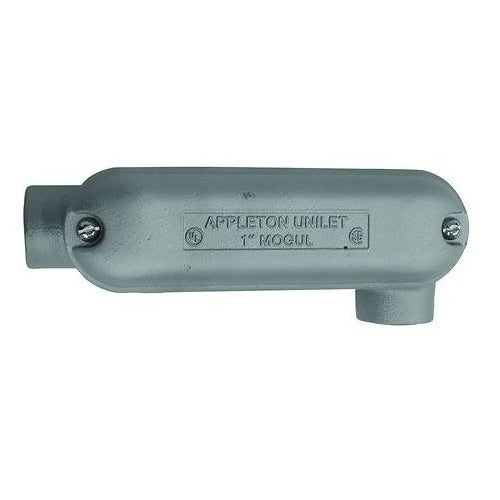

Appleton BUB100-M 1" Malleable UB Mogul Unilet (Body, Cover & Gasket)

Product Specifications

• UPC: 78138145954
• Size: 9.63 Inch L x 2.38 Inch W x 3.5 Inch H
• Installation: Threaded
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron Body, Neoprene Gasket, Stainless Steel Screw
• Approval: UL 514B, CSA C22.2, NEC, CEC
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 31 Cu Inch; Application Large/Heavy Conductor, Straight/Angle Turn, Making Tap and Splice Pulling
• Catalog Number: BUB100-M
• Brand Name: Unilet[R]
• Access Opening: Back
• Configuration: UB
• Cover Type: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: 45 Degree
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: MOGUL UNILETS TYPE UB NEC 6X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1 IN, LENGTH: 9.63 IN, WIDTH: 2.38 IN, HEIGHT: 3-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID METAL CONDUIT AND IMC
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 9.63 Inch Length X 2.38 Inch Width X 3.5 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 1 Inch Hub Size; Threaded Installation; UB Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; 45 Degree Hub Location; Back Access Opening; UNILETS[R] Brand; Wire Size (3) 2 AWG; Capacity 31 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381459549
• SKU Name: app bub100m

Resources

• Manufacturer Spec Sheet
