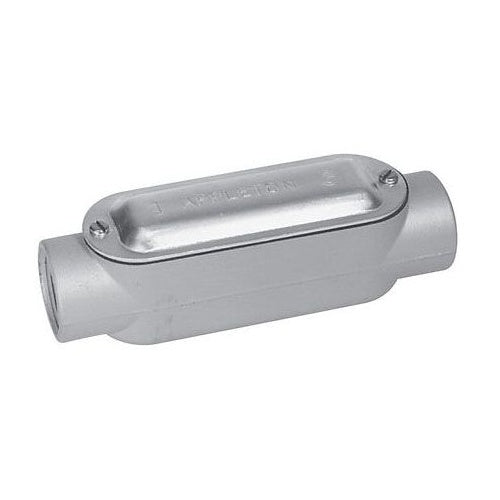

Appleton C-125ACGA Aluminum Conduit Outlet Body

Overview

Appleton C-125ACGA Aluminum Conduit Outlet Body

Product Specifications

• UPC: 78138182620
• Size: 8.56 Inch L x 2.5 Inch W x 2.75 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper Free Aluminum Body, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 85
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 34.8 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conduc
• Catalog Number: C-125ACGA
• Brand Name: Unilet[R]
• Access Opening: Side
• Configuration: C
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1-1/4 Inch
• Catalog Description: IMC/RIGID CONDUIT BODY, ACCESS OPENING SIDE, CONFIGURATION C, COVER TYPE EPOXY POWDER COATED CAST ALUMINUM, HUB LOCATION STRAIGHT, NUMBER OF HUBS 2, HUB SIZE 1-1/4 INCH, SIZE 8.56 INCH L X 2.5 INCH W X 2.75 INCH H, INSTALLATION THREADED, MATERIAL EPOXY POWDER COATED PRESSURE CAST COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE FORM 85, APPROVAL UL 514A/514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 34.8 CU INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 8.56 Inch Length X 2.5 Inch Width X 2.75 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Straight Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 2 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381826204
• SKU Name: app c125acga
