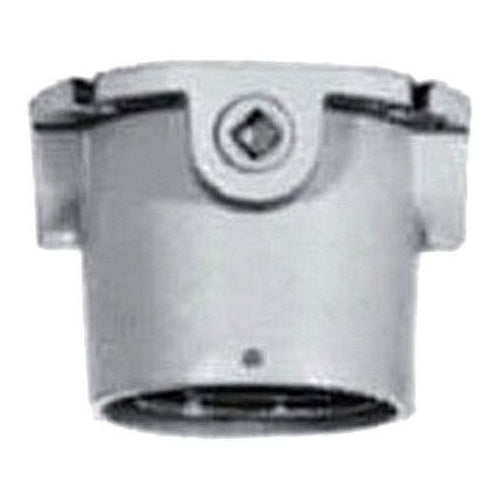

Appleton CAC75 3/4" Hub Ceiling Mounting Hood

Overview

Appleton CAC75 3/4" Hub Ceiling Mounting Hood

Product Specifications

• UPC: 78138151153
• Finish: Epoxy Powder Coated
• Enclosure: Class I Div 1 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/4X
• Approval: UL 844/1598/1598A
• Catalog Number: CAC75
• Brand Name: Code Master[TM]
• Type: Ceiling
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Number Of Hubs: 4
• Number Of Plugs: 3
• Hub Size: 3/4 Inch
• Material: Copper-Free Aluminum
• Catalog Description: MOUNTING HOOD, SIZE: 3/4 IN HUB, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, LAMP TYPE: INCANDESCENT, MOUNTING: CEILING, FINISH: EPOXY POWDER COAT, FOR CODE MASTER INCANDESCENT FACTORY SEALED LUMINAIRES
• Category: Lighting Accessories
• Full Technical Description: Ceiling Type; Copper-Free Cast Aluminum Material; Electrostatically Applied Baked Gray Epoxy Clad Finish; 3/4 Inch Threaded Hub Size; 4 Hub(S); UL 50/50E/844/1598/1598A/8750, UL (Canada and Us), CSA (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D Enclosure; Explosionproof, Dust Ignitionproof; 3 (Close-Up) Plug(S); Used on Code Master LED Luminaire; Application Chemical, Oil/Gas/Petrochemical, Pulp/Paper, Foundry, Waste/Sewage Treatment, Pharmaceutical, Mining, Power Generation, Paint Spray Booth, Hydrogen/Biofuel Plant, Liquid Natural Gas Plant; Applicable Standard Nec/Cec, Ansi/Iec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof HID Fixture Mounting Hood
• Unspsc: 39111817
• UPC 12 Digit: 781381511537
• SKU Name: app cac75

Resources

• Manufacturer Spec Sheet
