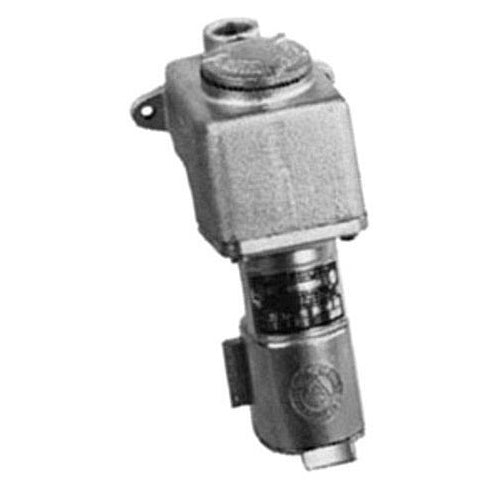

Appleton CESD-3034 Explosion-Proof Receptacle

Overview

Appleton CESD-3034 Explosion-Proof Receptacle

Product Specifications

• UPC: 78138118825
• Hub Size: 3/4 Inch
• Cover Type: Spring
• Enclosure: Class I Div 1 and 2 Group C D
• Approval: UL 1010/894/1682/1686, CSA C22.2
• Additional Information: Overall Size 6.75 Inch Width x 8.69 Inch Height; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump
• Catalog Number: CESD-3034
• Model: CESD
• Type: Feed Through
• Voltage Rating: 125 to 250 Volt AC
• Current Rating: 30 Amp
• Power Rating: 3 HP
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: APPLETON CESD SERIES RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 125 - 250 VAC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM RECEPTACLE AND COVER, MALLEABLE IRON MOUNTING BOX, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, CONNECTION: PRESSURE WIRE TERMINAL, MOTOR HORSEPOWER: 3 HP AT 125 - 250 VAC, FINISH: CERAMIC BURNISHED RECEPTACLE AND TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT) MOUNTING BOX, DIMENSIONS: 5.13 IN WIDTH X 8.69 IN HEIGHT X 6-3/4 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS D, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL LISTED: E10784, CSA STANDARD: C22. NO 30, C22.2 NO. 159, C22.2 NO 182.1, FOR CPH MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Vertical Feed-Through Type; 3/4 Inch Hub Size; 3 Wire(S); UL 894/1010/1682/1686, CSA C22.2 Approval; 125/250 Volt AC 3-Phase Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 30 Amp Current Rating; Spring Cover Type; 3 HP Power Rating; 4 Pole(S); Cph Mating Plug; SLIDE-LOK[R] Brand; Overall Dimension 6.75 Inch Width X 8.69 Inch Height; Material Zinc Electroplate/Chromate/Epoxy Powder Coated Malleable Iron (Mounting Box), Ceramic Burnished Copper-Free Aluminum (Receptacle); Application Lighting
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381188258
• SKU Name: app cesd3034

Resources

• Manufacturer Spec Sheet
