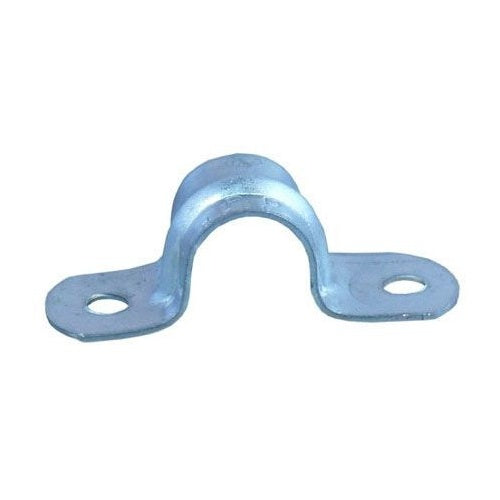

Appleton CF-100 1" 2-Hole Steel Conduit Strap

Overview

Appleton CF-100 1" 2-Hole Steel Conduit Strap

Product Specifications

• UPC: 78138118865
• Approval: CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Application Commercial and Industrial; Applicable Standard CEC
• Catalog Number: CF-100
• Type: 2-Hole
• Trade Size: 1 Inch
• Hole/Bolt Size: 0.19 Inch
• Length: 2.44 Inch
• Width: 0.75 Inch
• Height: 1.38 Inch
• Material: Zinc Electroplated Steel
• Catalog Description: STRAP, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, MOUNTING HOLES: 2, MOUNTING HOLE WIDTH: 0.19 IN, NUMBER OF HOLES: 2, WIDTH: 3/4 IN, HEIGHT: 1.38 IN, TRADE SIZE: 1 IN, DISTANCE BETWEEEN HOLES: 2.44 IN, STANDARD: CSA NUMBER C22.2 18.4, CSA 065178, FOR SUPPORTING RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: 2-Hole Type; Zinc Electroplated Steel Material; 0.75 Inch; 1.38 Inch; Imc/Rigid Metal Conduit Used on; CSA C22.2 Approval; 1 Inch Trade Size; 0.19 Inch Hole/Bolt Size; Application Commercial/Industrial, Hazardous Location; Applicable Standard CEC
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Strap
• Unspsc: 39121701
• UPC 12 Digit: 781381188654
• SKU Name: app cf100

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
