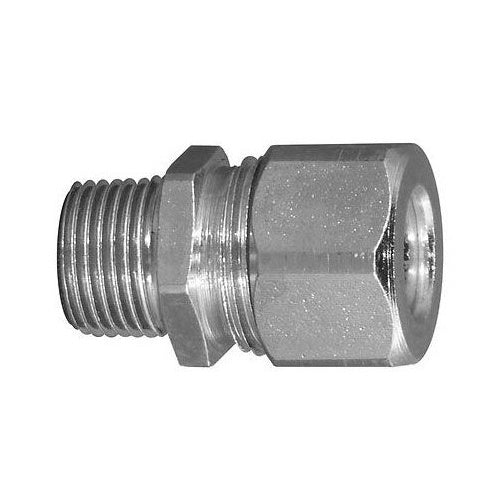

Appleton CG-100100 1" Aluminum Straight Cord Connector

Overview

Appleton CG-100100 1" Aluminum Straight Cord Connector

Product Specifications

• UPC: 78138119200
• Catalog Number: CG-100100
• Model: CG
• Type: Straight
• Trade Size: 1 Inch
• Material: Aluminum (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 1 to 1.125 Inch; Diameter 1.75 Inch; Color Coded Label Blue; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 1 - 1-1/8 IN, MATERIAL: ALUMINUM, COLOR: BLUE LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 1-3/4 IN HEIGHT, STANDARD: CLASS I, DIVISION 2,
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.75 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1 Inch Thread Size; 1 to 1.125 Inch Cord Size; Label Color Code Blue; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381192002
• SKU Name: app cg100100
