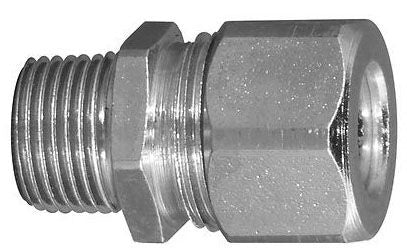

Appleton CG-1275S 3/4" Straight Liquidtight Cord Connector, Machined Steel

Overview

Appleton CG-1275S 3/4" Straight Liquidtight Cord Connector, Machined Steel, Industrial Strain Relief Connector

Product Specifications

• Brand: Appleton
• Manufacturer: Appleton Electric
• Manufacturer Part Number (MPN): CG-1275S
• Catalog Number: CG-1275S
• UPC: 78138144926
• Product Type: Liquidtight Cord Connector / Strain Relief Connector
• Series/Model: CG Series
• Connection Type: Straight Male Type
• Trade Size: 3/4 Inch
• Thread Size: 3/4 Inch
• Cord Size Range: 0.187 – 0.250 Inch
• Body Material: Machined Steel (Body/Cap)
• Sealing Material: Neoprene Grommet
• Washer Material: Steel / Non-Stick Washer
• Diameter: 1.25 Inch
• Color Code: Blue Label
• Environmental Rating: NEMA 3R, Class I Div 2, Class II Div 1 & 2, Class III
• Location Rating: Wet and Dry Locations
• Approval Standards: UL 514B, CSA C22.2
• Application: Commercial, industrial, and hazardous location electrical sealing connections
• Catalog Description: Straight liquidtight strain relief connector, 3/4 in size, machined steel construction, blue label color-coded, threaded hub connection, NEMA 3R rated, for 1/8–1/4 in cord range
• Full Technical Description: Appleton CG-1275S is a 3/4-inch straight male liquidtight cord connector designed for secure strain relief and environmental sealing in wet, dry, and hazardous locations. Constructed from machined steel with a neoprene sealing grommet and steel washer, it provides reliable cable protection for industrial applications. Rated UL 514B and CSA C22.2, it is suitable for commercial and industrial electrical installations requiring durable cord sealing.
