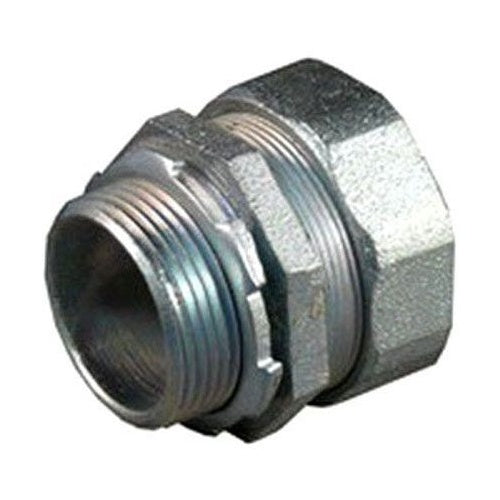

Appleton CG-1525S 1/4 Steel Cord Connector

Overview

Appleton CG-1525S 1/4 Steel Cord Connector

Product Specifications

• UPC: 78138151573
• Application: DRY LOCATION, LIQUIDTIGHT, STRAIN RELIEF, WET LOCATION
• Catalog Number: CG-1525S
• Brand Name: Appleton.
• Model: CG
• Type: STRAIGHT
• Thread Size: 1/4 INCH
• Material: STEEL BODY/CAP, NEOPRENE GROMMET, STEEL/NON-STKWASHER
• Cord Size: 0.156 TO 0.25 INCH
• Size: 3/4 INCH DIA
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1/4 IN, CONDUCTOR RANGE: 0.156 - 0.25 IN, MATERIAL: MACHINED STEEL, COLOR: ORANGE/GRAY LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 3/4 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND 2 CLASS III, CSA C22.2 NO. 18.3, 065178, FOR FLEXIBLE TYPE NEOPRENE, HYPALON AND PVC JACKETED POWER OR CONTROL CORD AND CABLE
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 0.75 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1/4 Inch Thread Size; 0.156 to 0.25 Inch Cord Size; Label Color Code Orange/Gray; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381515733
• SKU Name: app cg1525s
