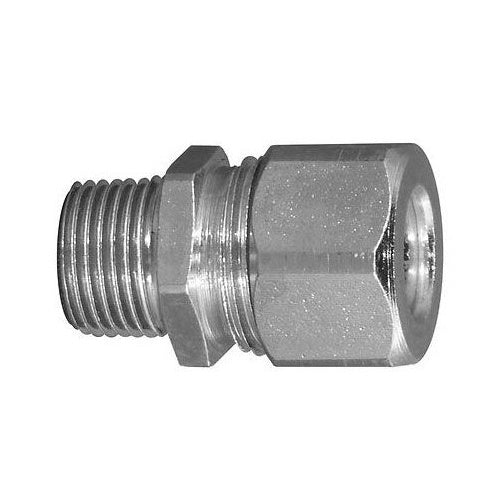

Appleton CG-153200 2" 1.531-1.780 Connector

Overview

Appleton CG-153200 2" 1.531-1.780 Connector

Product Specifications

• UPC: 78138144037
• Application: Liquid Tight, Strain Relief, Dry/Wet Location
• Additional Information: Enclosure Type NEMA 3R
• Catalog Number: CG-153200
• Model: CG
• Type: Straight Male
• Thread Size: 2 Inch
• Material: Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer)
• Cord Size: 1.531 to 1.78 Inch
• Size: 3 Inch Diameter
• Approval: CSA C22.2
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 2 IN, CONDUCTOR RANGE: 1.531 - 1.78 IN, MATERIAL: ALUMINUM, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 3 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 3 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 2 Inch Thread Size; 1.531 to 1.78 Inch Cord Size; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381440370
• SKU Name: app cg153200 1.5311.78
