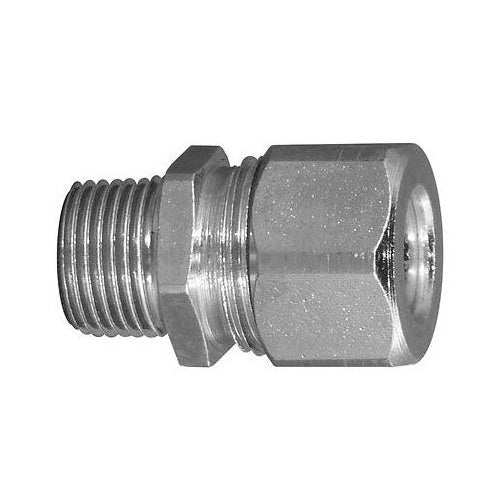

Appleton CG-225250 2-1/2" 2.250-2.500 Connector

Overview

Appleton CG-225250 2-1/2" 2.250-2.500 Connector

Product Specifications

• UPC: 78138144828
• Catalog Number: CG-225250
• Model: CG
• Type: Straight
• Trade Size: 2-1/2 Inch
• Material: Aluminum (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 2.25 to 2.5 Inch; Diameter 3.69 Inch; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 2-1/2 IN, CONDUCTOR RANGE: 2-1/4 - 2-1/2 IN, MATERIAL: ALUMINUM, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 3.69 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, CLASS II, DI
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 3.69 Inch Diameter Size; UL 514B Approval; Dry/Wet Location, Commercial and Industrial Application; 2-1/2 Inch Thread Size; 2.25 to 2.5 Inch Cord Size; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381448284
• SKU Name: app cg225250

Resources

• Manufacturer Spec Sheet
