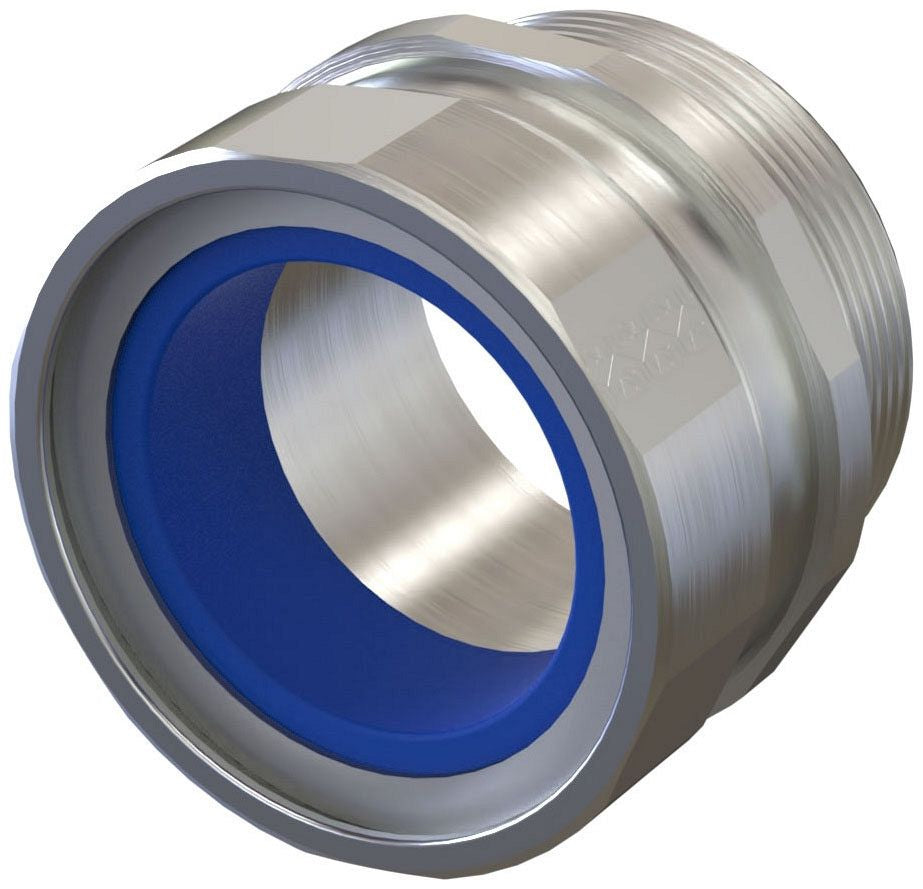

APP CG50A450 1/2" Industrial Cord Grip Connector, Steel Strain Relief, Liquidtight Hazardous Location Rated

Product Specifications

• Manufacturer Part Number (MPN): CG50A450
• UPC: 66236450006
• Product Type: Cord Grip / Strain Relief Connector
• Series/Model: Spec-GRADE™ CG Series
• Connection Type: Straight, Strain Relief
• Trade Size: 1/2 Inch
• Thread Size: 1/2 Inch
• Cord Size Range: 0.350 – 0.450 Inch
• Body Material: Zinc Plated Chromate Alloy Steel
• Finish/Coating: Zinc Plated, Chromate
• Grommet Color: Blue
• Dimensions: 1-3/32 Inch Diameter × 1-5/16 Inch Length
• Environmental Rating: Class I Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Application: Hazardous location, liquidtight industrial cable sealing and strain relief
• Standards/Approvals: UL (US & Canada), UL 514B, CSA, NEMA FB1, Federal Standard A-A-50553
• Catalog Description: 1/2" steel cord grip connector, blue grommet, .350–.450 cord range, hazardous location rated, Spec-GRADE industrial specification
• Full Technical Description: Straight strain relief cord grip connector constructed from zinc-plated chromate alloy steel with blue grommet. Designed for 0.350–0.450-inch cable range and 1/2-inch threaded hub connections. Rated UL 514B and CSA for hazardous location use, including Class I Div 2 and Class II Div 1/2 environments. Suitable for liquid-tight industrial applications requiring secure cable sealing and strain relief.
