Overview

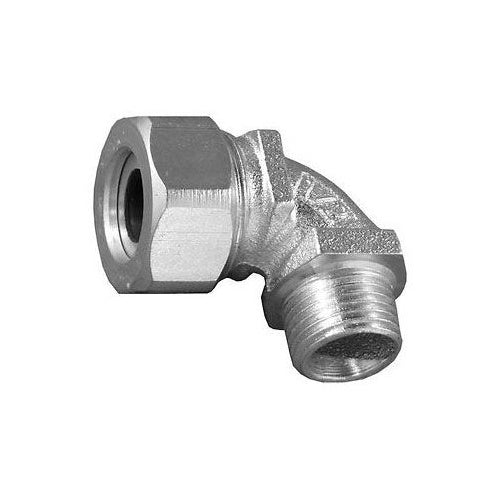

Appleton CG90-1250 1/2" Aluminum 90D Cord Connector

Product Specifications

• UPC: 78138118925
• Application: Dry/Wet Location
• Catalog Number: CG90-1250
• Model: CG
• Type: 90 Degree
• Thread Size: 1/2 Inch
• Material: Blue Aluminum
• Cord Size: 0.187 to 0.25 Inch
• Size: 1.25 Inch Diameter x 4.38 Inch Length
• Approval: UL 514B, CSA C22.2
• Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1/2 IN, CONDUCTOR RANGE: 1/8 - 1/4 IN, MATERIAL: CAST ALUMINUM, COLOR: BLUE LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.25 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1/2 Inch Thread Size; 0.187 to 0.25 Inch Cord Size; Label Color Code Blue; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381189255
• SKU Name: app cg901250

Resources

• Manufacturer Spec Sheet
