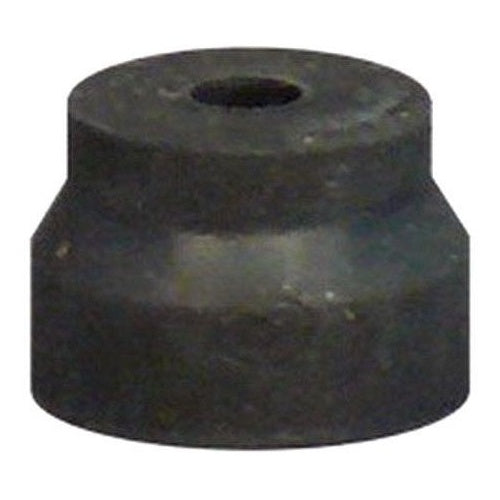

Appleton CGG221 .125-.187 Neo Gland

Overview

Appleton CGG221 .125-.187 Neo Gland

Product Specifications

• UPC: 78138139618
• Catalog Number: CGG221
• Type: Straight
• Thread Size: 1/2 Inch, 3/8 Inch
• Cable Outer Diameter: 0.125 to 0.187 Inch
• Enclosure: Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On CG/CG90 Series Connector
• Catalog Description: GROMMET, MATERIAL: RUBBER, CONDUCTOR RANGE: 1/8 - 3/16 IN, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND 2, CLASS III, FOR 3/8 HUB STRAIGHT CG-1238 AND 90 DEG CG90-1238 CONNECTOR, 1/2 IN HUB STRAIGHT CG-1250
• Category: Cable & Cord Grips
• Full Technical Description: Rubber (Grommet) Material; UL 514B, CSA C22.2 Approval; Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R Enclosure; 0.125 to 0.187 Inch Cable Outer Diameter; Hub Size 3/8 Inch and 1/2 Inch; Used on Cg/CG90 Series Straight/90 Degree Connector; Application Commercial/Industrial; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 781381396189
• SKU Name: app cgg221

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
