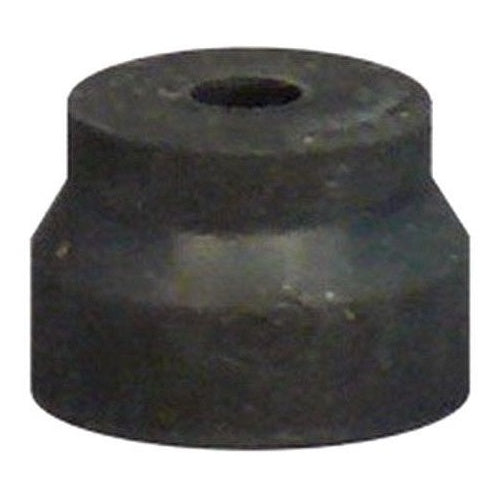

Appleton CGG271 .125-.250 Neo Gland

Overview

Appleton CGG271 .125-.250 Neo Gland

Product Specifications

• UPC: 78138139622
• Catalog Number: CGG271
• Brand Name: Appelton.
• Item: GLAND
• Material: NEOPRENE
• Used On: CABLE
• Additional Information: CABLE RANGE 0.125 TO 0.25 INCH; FOR CONNECTOR HUB SIZE 1/2 INCH AND 3/4 INCH
• Catalog Description: GROMMET, MATERIAL: RUBBER, CONDUCTOR RANGE: 1/8 - 1/4 IN, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND 2, CLASS III, FOR 1/2 IN HUB 90 DEG CG90-1250 CONNECTOR, 3/4 IN HUB STRAIGHT CG-1275
• Category: Cable & Cord Grips
• Full Technical Description: Rubber (Grommet) Material; UL 514B, CSA C22.2 Approval; Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R Enclosure; 0.187 to 0.25 Inch Cable Outer Diameter; Hub Size 1/2 Inch and 3/4 Inch; Used on Cg/CG90 Series Straight/90 Degree Connector; Application Commercial/Industrial; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 781381396226
• SKU Name: app cgg271
