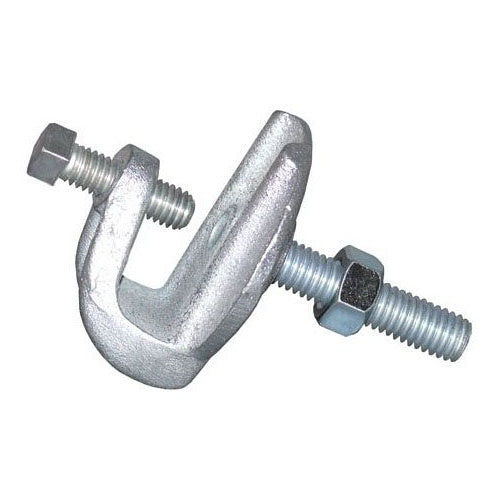

Appleton CH BeamclAMP F/Conduit Hanger Accys

Overview

Appleton CH Beamclamp F/Conduit Hanger Accys

Product Specifications

• UPC: 78138119225
• Catalog Number: CH
• Maximum Jaw Capacity Decimal: .65625
• Maximum Jaw Capacity Fractional: 21/32
• Maximum Jaw Capacity: 21/32 INCH
• Application: ELECTRICAL INSTALLATION
• Maximum Jaw Capacity Decimal Uom: in
• Additional Information: SUPPLIED WITH SCREW YES; SCREW TYPE SQUARE HEAD; WEIGHT 65 LB PER 100 PIECES; STANDARD PACKAGING QUANTITY 50 PIECES
• Catalog Description: EMT CONDUIT CLAMP BODY, CONDUIT SIZE 1/2 TO 1-1/2 INCH (EMT), MATERIAL MALLEABLE IRON, FINISH ZINC PLATED, STANDARD PACKAGE 50, WEIGHT 65 LB PER 100
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Zinc Plated Finish; Ordinary Location, Commercial/Industrial Application; Yes Supplied With Screw; Conduit Opening Size 0.66 Inch; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Beam Clamp
• Unspsc: 39121701
• UPC 12 Digit: 781381192255
• SKU Name: app ch

Resources

• Manufacturer Spec Sheet
