Appleton CH-50D 1/2-3/4 Double Conduit Hanger & ClAMP

Overview

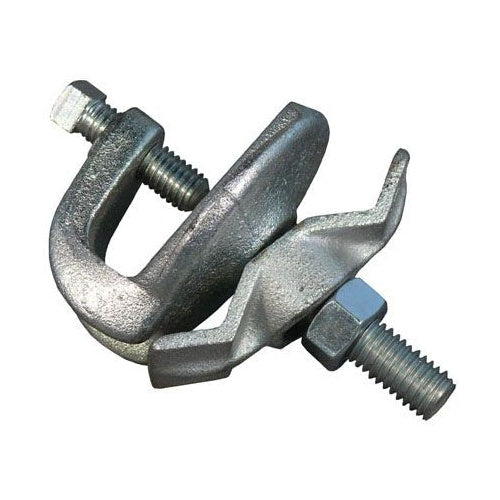

Appleton CH-50D 1/2-3/4 Double Conduit Hanger & Clamp

Product Specifications

• UPC: 78138119235
• Catalog Number: CH-50D
• Type: Pipe Hanger with Bolt and Nut
• Trade Size: 1/2 to 3/4 Inch Rigid, 1/2 to 1 Inch EMT
• Installation: Bolt with Nut
• Conduit Type: Rigid/EMT
• Material: Malleable Iron
• Finish: Zinc Plated
• Catalog Description: CH BEAM CLAMP, MATERIAL: MALLEABLE IRON, MAXIMUM JAW OPENING: 0.66 IN, SIZE: 1/2 - 3/4 IN RIGID, 1/2 - 3/4 - 1 IN EMT, FINISH: ZINC PLATED, FOR DOUBLE LINES OF CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Double Line Type; Malleable Iron Material; Zinc Plated Finish; 1/2 to 3/4 Inch (Rigid), 1/2 to 1 Inch (EMT) Conduit Size; Conduit Opening Size 0.66 Inch; Used on Emt/Rigid Metal Conduit; Application Commercial/Industrial; Applicable Standard Nec/Cec; CHD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Support
• Unspsc: 39121701
• UPC 12 Digit: 781381192354
• SKU Name: app ch50d
