Overview

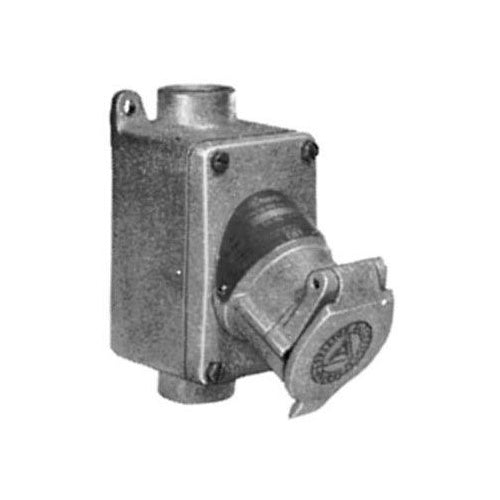

Appleton CPR-23 2W-3P Receptacle

Product Specifications

• UPC: 78138119875
• Material: EpoxyPowderCoated Copper Free Aluminum
• Mating Plug: CPP
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, NEMA 7B/7C/7D/3RX
• Approval: UL 1010, CSA C22.2
• Additional Information: Includes Cover; Application Lighting System, Conveyor, Heater, Motor-Generator Set, Air Conditioner, Compressor, Pumps
• Catalog Number: CPR-23
• Model: CPR
• Voltage Rating: 120 to 240 VAC/24 VDC
• Current Rating: 20 Ampere
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Cover Type: Spring
• Catalog Description: CPR SERIES REPLACEMENT RECEPTACLE COVER ASSEMBLY, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3RX, 7BCD, MOUNTING: BOX, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT, DIMENSIONS: 3 IN WIDTH X 4.05 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, UL STANDARD: UL 1010 (UL 1203), UL LISTED: E10784, E81751, CSA STANDARD: C22.2 NO .25, C22.2 NO .30, C22.2 NO. 159, CSA CERTIFIED: 038644, FOR CPP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: 45 Degree Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1010, CSA C22.2 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, NEMA 3RX/7BCD Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec; CPR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381198752
• SKU Name: app cpr23
