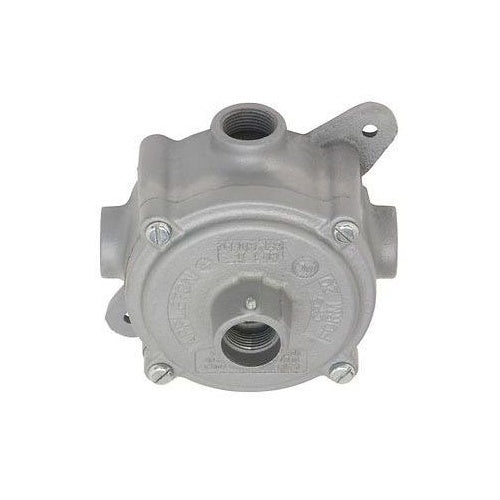

Appleton CPU20-75 Explosion-Proof w/Cover

Overview

Appleton CPU20-75 Explosion-Proof w/Cover

Product Specifications

• UPC: 78138129959
• Capacity: 24 Cu Inch
• Shape: Round
• Number Of Plugs: 3
• Cover Type: Blank
• Cover Opening Diameter: 3.81 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL 886
• Additional Information: Includes (4) 3/4 to 1/2 Inch Reducer, Blank Cover; Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: CPU20-75
• Brand Name: Unilet[R]
• Model: CPU
• Style: X
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 4
• Hub Location: (4) Side
• Catalog Description: UNILETS CPU UNIVERSAL OUTLET BOX WITH HUB COVER, NUMBER OF OUTLET: 4, MATERIAL: MALLEABLE IRON, SIZE: 1/2 - 3/4 IN, CABLE ENTRY: (4) 1/2 - 3/4 IN HUB, CUBIC CAPACITY: 21 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.81 IN, FIXTURE STEM SIZE: 3/
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL 886 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Hub Cover Type; 24 Cubic Inch Capacity; X Style; 3 Plug(S); (4) Side Hub Location; 3.81 Inch Cover Opening Diameter; Constructional Feature Explosionproof/Dust Ignitionproof; Includes (4) 3/4 to 1/2 Inch Reducer; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; CPU Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381299596
• SKU Name: app cpu2075
