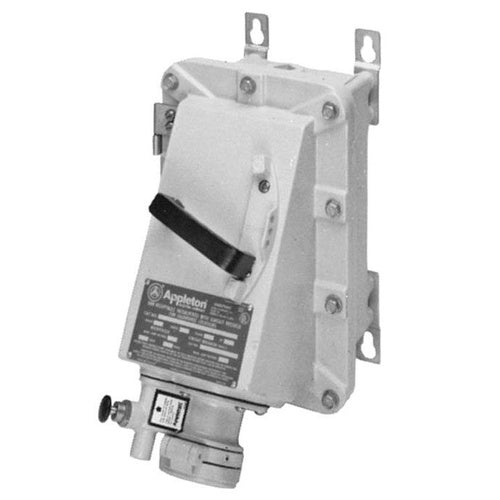

Appleton DBR1034HFB100 Receptacle w/Circuit Breaker

Overview

Appleton DBR1034HFB100 Receptacle w/Circuit Breaker

Product Specifications

• UPC: 78138147496
• Breaker Type: FD
• Constructional Feature: DUST, IGNITION PROOF
• Hub Size: (1) 1 1/2 INCH (TOP), (2) 1 1/2 INCH (BOTTOM)
• Hub Location: BOTTOM, TOP
• Number Of Hubs: 3
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure Finish: EPOXY CLAD DOUBLE COATED BAKED
• Enclosure: NEMA 3/3R/5/7C/7D/9F/9G
• Size: 9.06 INCH W X 14.14 INCH D X 16.57 INCH H
• Catalog Number: DBR1034HFB100
• Brand Name: Appleton[R]
• Model: DBR
• Breaker Voltage Rating: 600 VAC
• Breaker Current Rating: 100 AMPERE
• Receptacle Current Rating: 100 AMPERE
• Receptacle Configuration: 4 POLE 3 WIRE
• Number Of Breaker Poles: 3
• Catalog Description: EXPLOSIONPROOF PIN AND SLEEVE RECEPTACLE AND CIRCUIT BREAKER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, BREAKER VOLTAGE RATING 600 VAC, BREAKER CURRENT RATING 100 AMPERE, RECEPTACLE VOLTAGE RATING 600 VAC, RECEPTACLE CURRENT RATING 100 AMPERE, RECEPTACLE CONFIGURATION 4 POLE 3 WIRE, NUMBER OF BREAKER POLES 3, BREAKER TYPE FD, HUB SIZE (1) 3/4 INCH, (1) 1-1/2 INCH (TOP), (1) 3/4 INCH, (2) 1-1/2 INCH (BOTTOM), HUB LOCATION TOP, BOTTOM, NUMBER OF HUBS 3, MATING PLUG ACP1034CD, GROUNDING STYLE SHELL, EXTRA POLE, ENCLOSURE MATERIAL COPPER-FREE ALUMINUM, ENCLOSURE FINISH EPOXY POWDER COATED, ENCLOSURE CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/9FG, SIZE 5.57 INCH W X 14.14 INCH D X 16.57 INCH H, APPROVAL UL 894/1010/1203/1682/1686, INSULATING BLOCKS MATERIAL FIBER GLASS REINFORCED POLYESTER, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS
• Category: Pin & Sleeve Devices
• Full Technical Description: 9.06 Inch Width X 14.14 Inch Depth X 16.57 Inch Height Size; 1-1/2 Inch Threaded Hub Size; Copper-Free Aluminum Enclosure Material; 3 Hub(S); 3 Phase(S); UL 894/1010/1203/1682 Approval; Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/9FG Enclosure; Dust Ignitionproof; Epoxy Powder Coated Enclosure Finish; (1) Top, (2) Bottom Hub Location; FD Breaker Type; 3 Breaker Pole(S); 600 Vol
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 781381474962
• SKU Name: app dbr1034hfb100

Resources

• Manufacturer Spec Sheet
