Product information
Overview

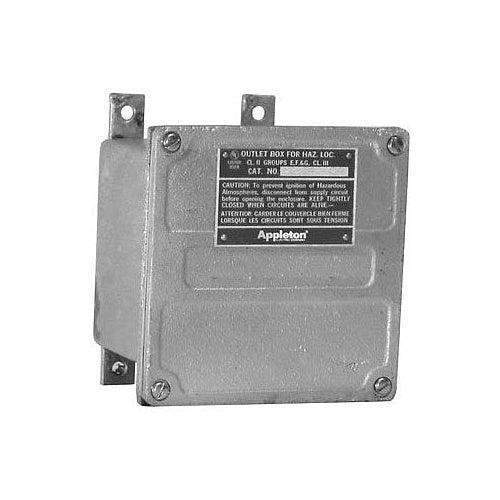

Appleton DTX080604 8X6X4 Iron Junction Box
Product Specifications
- UPC: 78138184351
- Depth: 4-7/32 INCH
- Depth In Inch: 4.21875
- Material: CAST IRON
- Finish: HOT DIP GALVANIZED
- Enclosure: NEMA 4/9EFG
- Mounting: LUGS, SURFACE
- Cover Type: GASKETED, BOLT ON
- Approval: UL 886
- Height In Inch Uom: in
- Width In Inch Uom: in
- Catalog Number: DTX080604
- Depth In Inch Uom: in
- Additional Information: APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL; CONSTRUCTIONAL FEATURE DUST IGNITION PROOF, WATER TIGHT
- Brand Name: Appleton.
- Model: DTX
- Type: FLANGED
- Height: 9-13/16 INCH
- Height In Inch: 9.8125
- Width: 7-13/16 INCH
- Width In Inch: 7.8125
- Catalog Description: CAST JUNCTION BOX, HUB SIZE 3/4 INCH, INNER SIZE 8 INCH L X 6 INCH W X 4 INCH D, COVER TYPE GASKETED BOLT-ON, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING SURFACE WITH LUG, APPROVAL UL 886/1203, APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, WATERTIGHT
- Category: Cast Boxes
- Full Technical Description: 8 Inch Length X 6 Inch Width X 4 Inch Depth Inner Size; 3/4 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.25 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 8 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
- Made In Usa: Yes
- Manufacturer: APPLETON ELECTRIC COMPANY
- Manufacturer Brand: Appleton Electric
- Sub Category: Explosionproof Junction Box
- Unspsc: 39121314
- UPC 12 Digit: 781381843515
- SKU Name: app dtx080604
