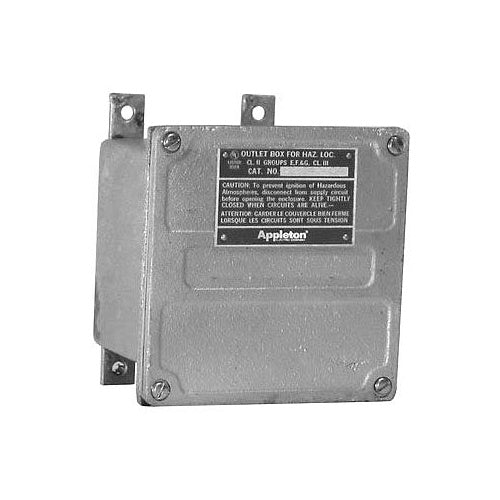

Appleton DTX141406 14X14X6 Iron Junction Box

Overview

Appleton DTX141406 14X14X6 Iron Junction Box

Product Specifications

• UPC: 78138184382
• Depth: 6-9/32 INCH
• Depth In Inch: 6.28125
• Material: CAST IRON
• Finish: HOT DIP GALVANIZED
• Enclosure: NEMA 4/9EFG
• Mounting: LUGS, SURFACE
• Cover Type: GASKETED, BOLT ON
• Approval: UL 886
• Height In Inch Uom: in
• Width In Inch Uom: in
• Catalog Number: DTX141406
• Depth In Inch Uom: in
• Additional Information: APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL; CONSTRUCTIONAL FEATURE DUST IGNITION PROOF, WATER TIGHT
• Brand Name: Appleton.
• Model: DTX
• Type: FLANGED
• Height: 16-5/8 INCH
• Height In Inch: 16.625
• Width: 16-5/8 INCH
• Width In Inch: 16.625
• Catalog Description: CAST JUNCTION BOX, HUB SIZE 2 INCH, OVERALL SIZE 16.63 INCH L X 16.63 INCH W X 6.59 INCH D, INNER SIZE 14 INCH L X 14 INCH W X 6 INCH D, WALL THICKNESS 0.28 INCH (TOP), 0.31 INCH (COVER), 0.28 INCH (BACK), COVER TYPE GASKETED BOLT-ON, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING SURFACE WITH LUG, APPROVAL UL 886/1203, APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, WATERTIGHT
• Category: Cast Boxes
• Full Technical Description: 16.63 Inch Length X 16.63 Inch Width X 6.59 Inch Depth Overall Size; 14 Inch Length X 14 Inch Width X 6 Inch Depth Inner Size; 2 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.31 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 14 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 781381843829
• SKU Name: app dtx141406
